Product Overview

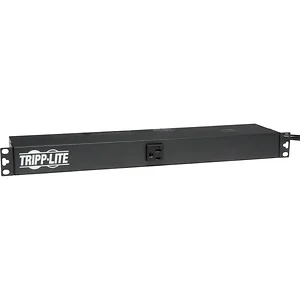

Tripp Lite's PDU1220T AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures.
Technical Specifications
- Corded AC power distribution unit with 20 amp capacity and 13 AC receptacles - Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or zero-U formats - Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure - Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment - 13 NEMA5-15/20R output receptacles accept common NEMA5-15 and 5-20 equipment plugs - 15 foot AC cord NEMA5-20P plug connection - Switch-free design prevents the potential for accidental shutoff of connected loads - 20 amp electrical capacity with circuit breaker - 120V AC, 50/60Hz electrical compatibility System overview - 1U rackmount, 0U vertical rackmount, wallmount or under-counter Power Distribution Unit, 20A capacity Voltage compatibility - 120V AC Frequency compatibility - 50/60 Hz Output nominal voltage - 120V AC Outlet quantity / type - 13 NEMA 5-15R / NEMA 5-20R (1 front / 12 rear) Overload protection - 20A Input connection type - NEMA 5-20P Input cord length - 15 Recommended electrical service - 20A 120V Switches - No power switch Unit Dimensions (HWD/in) - 1.75 (1U) x 17.5 x 4.5
