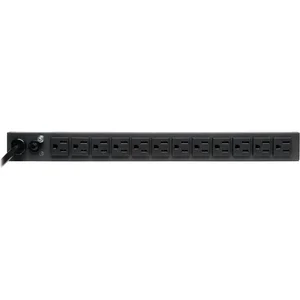

This Tripp Lite PDU1215 is a convenient way to provide power for many different applications. It's ideal for telecom, audio/visual, networking, security and other uses. This 15A PDU provides power to many different units at one time. It has a total of 13 outlets, one in the front and 12 in the rear. This power strip is housed in reversible, all-metal material. It can be mounted on a rack, a wall or under a counter. This PDU has no switches, which prevents it from inadvertently being turned off or shut down.
Technical Specifications
System overview - 1U rackmount, 0U vertical rackmount, wallmount or under-counter Power Distribution Unit Voltage compatibility - 120V AC Frequency compatibility - 50/60 Hz Output nominal voltage - 120V AC Outlet quantity / type - 13 NEMA 5-15R (1 front / 12 rear) Overload protection - 15A Input connection type - NEMA 5-15P Input cord length - 15 Recommended electrical service - 15A 120V Switches - No power switch Unit Dimensions (HWD/in) - 1.75 (1U) x 17.5 x 4.5 Unit Dimensions (HWD/cm) - 4.5 x 44.5 x 11.4 Material of construction - Sheet metal Form factors supported - 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported TVSS grounding - Back panel nut and bolt grounding lug KEY BUYING POINTS - Corded AC power distribution unit with 15 amp capacity and 13 AC receptacles - Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or zero-U formats - Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure - Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
