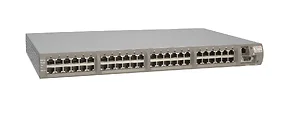

Microsemi PD-6524G/AC/M/F PowerDsine 6524 Managed Switch 24-Ports Ethernet PD-6524G/AC/M/F

The PowerDsine 6500/6500G series sets a new standard for highly secure, remotely-managed and safe-to-use Power over Ethernet Midspans (PoE injectors).

PowerDsine 6500/6500G series comprises 6, 12 and 24- port models, making an even wider range of flexible Power over Ethernet installations possible.

PowerDsine 6500/6500G family allows IP telephones, wireless LAN access points, security network cameras and many other types of data terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. With PoE, data and power flow smoothly and safely over a single LAN cable with no interference.

• Input Voltage: 240 V AC
• Output Voltage: 54 V DC
• Output Power: 15.40 W Per Port
• Output Power: 400 W Total
• Compatibility:
• IP Telephones
• Wireless LAN Access Points
• Security Network Cameras
• Output Ports: 24 x RJ-45 10/100/1000Base-T
• Height: 1.8"
• Width: 17.3"
• Depth: 10.8"
• Weight (Approximate): 8.80 lb
• Certifications & Standards:
• IEEE 802.3af complaint
• CE

Electromagnetic Emission & Immunity:

• FCC Part 15, Class B with FTP cabling
• EN 55022 Class B (Emissions)
• EN 55024 (Immunity)
• VCCI

Safety Approvals:

• UL/cUL Per EN 60950
• GS Mark Per EN 60950
• Green Compliant: Yes
• Green Compliance Certificate/Authority: RoHS
• Green Compliance Certificate/Authority: WEEE
