SKU: AZTEKT81WR |  Mfg. Part: 469-4250  | UPC: 884116127796  |
 1 Reviews  |     Share Make an offer

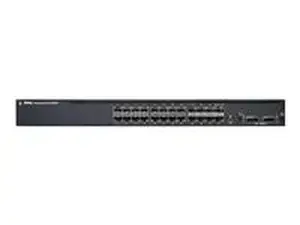

Dell 469-4250 PCT8132F 32PT L3 SWITCH 24X 10GB SFP

Special Order
Ships in 1-2 weeks
Condition: New

$8,908.94  $12,027.07

AUTHORIZED
 Free Shipping for this Item

Product Overview

Dell 469-4250 PCT8132F 32PT L3 SWITCH 24X 10GB SFP

Technical Specifications

Main Specifications

Product Description Dell PowerConnect 8132F - switch - 24 ports - managed - rack-mountable
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 24 x 10 Gigabit SFP+
Performance Switching capacity: 640 Gbps ? Forwarding performance: 960 Mbps
Capacity ACL: 100 ? QoS hardware queues: 8 ? ARP entries: 4000 ? Multicast entries (Layer 3): 2000 ? Virtual interfaces (VLANs): 1000 ? OSPF routes: 8000 ? RIP routes: 512 ? IPv4 routes: 512 ? IPv6 routes: 256
MAC Address Table Size 128K entries
Jumbo Frame Support 9216 bytes
Routing Protocol OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, MLDv2, MLD, CIDR
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI
Features Auto-sensing per device, DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, High Availability, full duplex mode, firmware upgradable, SNTP support, Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, priority-based flow control, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Data Center Bridging (DCB), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Dynamic VLAN Support (GVRP), dual firmware images, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), redundant hot swappable fans, congestion control, 9MB packet buffer, tagged VLAN, Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication
Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz
Power AC 120/230 V (50/60 Hz)
Power Redundancy Yes
Dimensions (WxDxH) 17.1 in x 18.1 in x 1.7 in
Weight 21.67 lbs
Manufacturer Warranty Limited lifetime warranty

Extended Specifications

General
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 24 x 10 Gigabit SFP+
Performance Switching capacity: 640 Gbps ? Forwarding performance: 960 Mbps
Capacity ACL: 100 ? QoS hardware queues: 8 ? ARP entries: 4000 ? Multicast entries (Layer 3): 2000 ? Virtual interfaces (VLANs): 1000 ? OSPF routes: 8000 ? RIP routes: 512 ? IPv4 routes: 512 ? IPv6 routes: 256
MAC Address Table Size 128K entries
Jumbo Frame Support 9216 bytes
Max Units In A Stack 6
Routing Protocol OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, MLDv2, MLD, CIDR
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI
Encryption Algorithm MD5, AES, TLS 1.0, SSL 3.0
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Auto-sensing per device, DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, High Availability, full duplex mode, firmware upgradable, SNTP support, Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, priority-based flow control, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Data Center Bridging (DCB), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Dynamic VLAN Support (GVRP), dual firmware images, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), redundant hot swappable fans, congestion control, 9MB packet buffer, tagged VLAN, Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication
Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz
RAM 2 GB
Flash Memory 256 MB
Built-in Devices LED panel
Status Indicators Link/activity
Expansion / Connectivity
Interfaces 24 x 10Gb Ethernet - SFP+ ? 1 x USB Type A ? 1 x console - RJ-45 management ? 1 x Ethernet - RJ-45 management
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 240 Watt
Miscellaneous
Rack Mounting Kit Included
Compliant Standards FCC Class A certified, CCC, EMC, RoHS, C-Tick Class A, ICES Class A, NRTL, SCC, VCCI Class A
Dimensions & Weight
Width 17.1 in
Depth 18.1 in
Height 1.7 in
Weight 21.67 lbs
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 32 ?F
Max Operating Temperature 122 ?F
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -4 ?F
Max Storage Temperature 158 ?F
Humidity Range Storage 10 - 95% (non-condensing)

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • DELL
  • 469-4250
  • 884116127796
  • New
  • 21.64 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Jun 22, 2013
Product Identifiers: Brand: Dell • Part #: 469-4250 • UPC: 884116127796 • Category: Switch Modules

Dell 469-4250 PCT8132F 32PT L3 SWITCH 24X 10GB SFP
