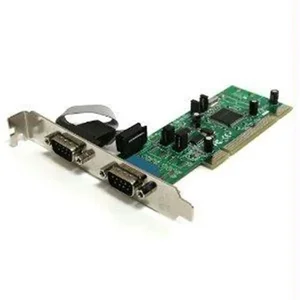

StarTech 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - 2 x 9-pin DB-9 Male RS-422/485 Serial Universal PCI
The StarTech PCI2S4851050 is a 2-port PCI serial adapter card designed to add two RS422/RS485 serial ports to a host computer via a single PCI expansion slot. This adapter is suitable for IT professionals and businesses requiring additional serial connectivity for industrial control systems, point-of-sale devices, or other RS422/RS485 compatible equipment. It features a 161050 UART and supports both 2-wire and 4-wire RS485 modes, facilitating reliable high-speed serial communication at up to 128kB/s. The card's design includes a 256-byte transit/receive FIFO buffer to reduce CPU load. It accommodates both standard and low-profile system form factors with included brackets and is compatible with 3.3V or 5V Universal PCI/PCI-X slots, offering flexibility for various PC platforms.
General Information
Manufacturer:StarTech.com
Manufacturer Part Number:PCI2S4851050
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
Marketing Information:
The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Packaged Quantity:1
Product Type:Serial Adapter
Technical Information
Host Interface:Universal PCI
Data Transfer Rate:128kB/s
UART Type:161050
Platform Supported:PC
Interfaces/Ports
Number of Serial Ports (External):2
Physical Characteristics
Form Factor:Plug-in Card
Card Height:Dual-profile
Height:1.8"
Width:0.6"
Length:4.7"
Weight (Approximate):2 oz
Miscellaneous
Package Contents:
Environmentally Friendly:Yes
Environmental Certification:
Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:Lifetime
This serial adapter card is compatible with Universal PCI slots and can accommodate both 3.3V and 5V PCI/PCI-X slots.
The package includes the 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART, standard and low profile/half-height brackets, and a driver CD.
The card supports a data transfer rate of up to 128kB/s for serial communication.
Yes, the card comes with both standard and low profile/half-height brackets, allowing it to be installed in a broad range of system form factors.
PCI2S4851050 - Startech ADD TWO RS422/485 SERIAL PORTS THROUGH A STANDARD OR LOW PROFILE PCI EXPANSION S
