Technical Specifications

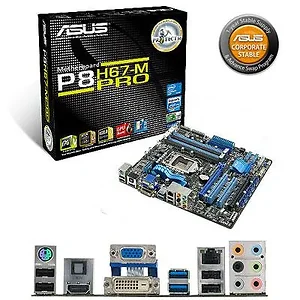

ASUS MOTHERBOARD P8H67-M PRO/CSM REV 3.0 CORE I7/I5/I3 LGA1155 H67 DDR3 USB3 PCI EXPRESS SATA MICROATX RETAIL
P8H67-M PRO/CSM
Faster Data Transfer with True USB 3.0 and SATA 6Gb/s on Intel H67 Platform ? Protect 3.0 Technology - Protect the Earth, Your Device and You! ? GPU Boost ? Go to the Limit with iGPU Level Up! ? Auto Tuning & TurboV - Real-time O.C. Tools ? EFI BIOS ? Flexible and Easy BIOS Interface ? AI Suite II ? One-Stop Access to Innovative ASUS Features ? USB 3.0 and SATA 6Gb/s Support ? Let you experience the latest transfer technology!
LGA1155 INTEL? SANDY BRIDGE PROCESSOR READY This motherboard supports the latest Intel? Sandy Bridge processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel? Sandy Bridge processors are among the most powerful and energy efficient CPUs in the world.
INTEL? H67 CHIPSET The Intel? H67 Express is the latest single-chipset design that supports the new socket 1155 Intel? Core? i3/Core? i5/Core? i7 2nd generation processors. It improves performance by utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally, the H67 comes with 2 SATA 6Gb/s and 4 SATA 3Gb/s ports for faster data retrieval, doubling the bandwidth of current bus systems. Moreover, Intel? H67 Express Chipset also supports iGPU function. -------------------------
VENDOR: ASUS TeK
MPN: P8H67-M PRO/CSM REV 3.0
UPC: 610839179541
DETAIL SPECIFICATIONS
CPU Intel Socket 1155 Core i5 Processor/Core i3 Processor/Core i7 Processor Supports Intel Turbo Boost Technology 2.0 (The Turbo Boost Thchnology 2.0 support depends on the CPU types. )
CHIPSET Intel H67 Express Chipset
MEMORY The Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market. Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details. ^ xDIMM DIMM, Max. 32 GB, DDR3 1333/1066 Memory Please refer to www.asus.com or user manual for Memory QVL.
EXPANSION SLOTS[ x PCIe 2.0 x16 [ x PCIe 2.0 x4
VGA Supports RGB with max. resolution 2048 x 1536 at 75Hz
MULTI-GPU SUPPORT Supports ATI Quad-GPU CrossFireX Technology
STORAGE INTEL H67 EXPRESS CHIPSET \ xSATA 6.0 Gb/s ports VIA VT6415 PATA controller v1 xUltraDMA 133/100 for up to 2 PATA devices
LAN Realtek 8111E Gigabit LAN controller
WIRELESS LAN Realtek 8111E Gigabit LAN controller
AUDIO Realtek ALC892 8-Channel High Definition Audio CODEC - BD Audio Layer Content Protection - Supports Jack-Detection, Multi-streaming and Front Panel Jack-Retasking - Optical S/PDIF out port at mid-board back I/O
USB USB 3.0 controller: 2 - x USB 3.0/2.0 ports
ASUS UNIQUE FEATURES ASUS TurboV EVO - GPU Boost (without switch) - Auto Tuning (adopt Fast Mode) - TurboV ASUS Power Design - 4+2 Phase Power Design ASUS Exclusive Features - MemOK - AI Suite II - ASUS EFI BIOS EZ Mode featuring friendly graphics user interface ASUS Protect 3.0 Technology - ASUS EPU - Anti-Surge Protection - Low EMI Solution ASUS Quiet Thermal Solution - ASUS Fanless Design: Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design - ASUS Q-Slot - ASUS Q-DIMM
BACK PANEL I/O PORTS[ x PS/2 Keyboard/Mouse Combo port [ x DVI [ x D-Sub [ x HDMI [ x LAN(RJ45) port(s) \ x USB 3.0/2.0 ports (blue) ^ x USB 2.0/1.1 ports [ x S/PDIF Out (Optical) ` x Audio Jacks
INTERNAL I/O CONNECTORS_ x USB 2.0/1.1 connector(s) support additional 10 USB ports [ x MemOK Button [ x IDE connector [ x TPM connector \ x SATA 6.0Gb/s (gray) ^ x SATA 3.0Gb/s (blue) [ x CPU Fan connector(s) (4-pin) [ x Chassis Fan connector(s) (4-pin) [ x Power Fan connector(s) (3-pin) [ x S/PDIF Out connector [ x 24-pin ATX Power connector [ x 8-pin ATX 12V Power connector [ x Front panel audio connector [ x System Panel COM connector [ x Clear CMOS jumper
FORM FACOTOR Micro ATX
WARRANTY] Years
