SKU: AZTEKT3AHA |  Mfg. Part: P7F7-E WS SUPERCOMPU  | UPC: 610839175604  |
 1 Reviews  |     Share Make an offer

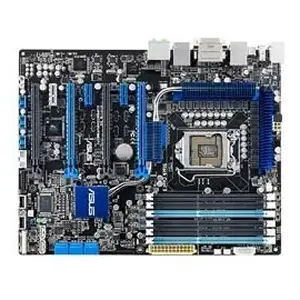

Asus P7F7-E WS SUPERCOMPU MOTHERBOARD P7F7 E WS SUPERCOMPUTER COREI7 5 3 IBEXPEAK3450 NF200X1 LGA1156 ATX Retail

Special Order
Ships in 1-2 weeks
Condition: New

$411.03  $554.89

AUTHORIZED
 Free Shipping for this Item

Product Overview

Asus P7F7-E WS SUPERCOMPU MOTHERBOARD P7F7 E WS SUPERCOMPUTER COREI7 5 3 IBEXPEAK3450 NF200X1 LGA1156 ATX Retail

Technical Specifications

Asus Motherboard P7F7-E WS SuperComputer Core i7/i5/i3 IbexPeak3450/NF200x1 LGA1156 ATX Retail

Sufficient IO bandwidth for 3 way and 2 way SLI
The Best Graphic Performance you Ever have
The 4 PCIe run on the speed of quad x8 or dual x16 links gives you the most reliable 3-Way SLI graphic performance you ever have when you are engaged in Mechanical / Architecture / Interior / Aircraft / Audio / Video Design or when you are playing games in leisure time.Besides, P7F7-E WS SuperComputer provide you the fastest 2-Way SLI graphic performance when you install Geforce graphic cards in the two blue PCIe x16 lots which can work at 16 links.

CUDA parallel computing power supported
The motherboard will achieve outstanding and dependable performance in the role of a Personal Supercomputer when working in tangent with discrete CUDA technology—providing unprecedented return on investment. Users can count on up to 4 Tesla cards with Clarkdale CPU which is built with on-board graphic chipset, that are plugged into P7F7-E WS SuperComputer for intensive parallel computing on tons of data, which delivers nearly 4 teraflops of performance. It is the best choice to work as a personal supercomputer on your desk instead of a computer cluster in a room.

DDR3 ECC memory and embedded 6 memory slots support
The P7F7-E WS SuperComputer can support both DDR3 non-ECC and ECC un-buffered memory.ECC stands for "Error Correction Codes" and is a method used to detect and correct errors introduced during storage or transmission of data.Embedded with six memory slots, the motherboard can accommodate up to 16GB of DDR3 memory. The flexible options include installing four 4GB modules or two 4GB modules and two 2GB modules. As the price of 2GB modules is 15% less than 4GB modules, the ASUS P7F7-E WS SuperComputer provides the flexibility to get the most RAM at the lowest cost (Please check memory QVL on website) .

Vendor: ASUS TeK
MPN: P7F7-E WS SUPERCOMPUTER
UPC:
Key Features
Bulk/Retail - Retail
USB 3.0 Port - 2
Form Factor - ATX
Processor - Intel Core i7 / Core i5 / Core i3 / Pentium
Pin Count - Socket 1156
USB 2.0 Port - 12
Max RAM - 16 GB
Serial ATA Controller - 8*Serial ATA
RAID Controller - RAID 0/1/5/10
Warranty - 3 Years
Audio Output - VIA VT2020
Slots - 4 x PCIe 2.0 x16 / 3 x PCIe x1
Supported RAM Technology - DDR3 2000(O.C.)/1333/1066/800
LAN - 2 x Realtek 81112L
Chipset Type - Intel® Ibex Peak 3450 / Nvidia NF200*1
Detail Specifications

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • ASUS
  • P7F7-E WS SUPERCOMPU
  • 610839175604
  • New
  • 5 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Dec 30, 2025
Product Identifiers: Brand: Asus • Part #: P7F7-E WS SUPERCOMPU • UPC: 610839175604 • Category: Motherboards

Asus P7F7-E WS SUPERCOMPU MOTHERBOARD P7F7 E WS SUPERCOMPUTER COREI7 5 3 IBEXPEAK3450 NF200X1 LGA1156 ATX Retail

Reviews for Asus P7F7-E WS SUPERCOMPU

$411.03
CPU
Intel Socket 1156 Core i7 Processor/Core i5 Processor/Core i3 Processor/ Pentium desktop Processors
LGA 1156 socket for Intel XEON 3400 series server processor
Chipset
Intel Ibex Peak 3450 Chipset
Nvidia NF200 x 1
Memory
6 x DIMM, Max. 16 GB, DDR3 2000(O.C.)/1333/1066/800 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Expansion Slots
2 x PCIe 2.0 x16 (at x16 or x8)
2 x PCIe 2.0 x16 (at x8)
3 x PCIe x1 (at x1)
VGA
Multi-VGA output support:DVI-I port
Supports DVI with max. resolution 1920x 1200 at 60Hz
Supports RGB with max. resolution 2048x 1536 at 75 Hz
Maximum shared memory of 1748 MB

CUDA support
Up to 3 NVIDIA Tesla cards + 1 NVIDIA Quadro card
Up to 4 NVIDIA Tesla cards (only for Clarkdale processor)
Multi-GPU Support
Supports NVIDIA Geforce 3 way/2 way SLI techonology
Supports ATI CrossFireX technology, up to Quad CrossFireX
Storage
Intel Ibex Peak 3450 Chipset
6 xSATA 3.0 Gb/s ports
Intel Matrix Storage Support RAID 0,1,5,10
Marvell 9128 PCIe SATA6Gb/s controller
2 xSATA 6.0 Gb/s ports, supporting SATA 0 and 1
LAN
2 x Realtek 81112L Dual Gb LAN Support Teaming Technology
Audio
VIA VT2020 10-Channel High Definition Audio CODEC
Multi-Streaming
Jack-Sensing
Front Panel Jack-Retasking
Optical S/PDIF out ports at back I/O
ASUS Noise-Filer
IEEE 1394
LSI FW643E-02 controller supports 1 x 1394a port(s) and 2 x 1394b port(s)
USB
NEC USB 3.0 controller
- 2 x USB 3.0 ports (Blue, at back panel)
Intel Ibex Peak 3450 Express Chipset
- 12 x USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
Back Panel I/O Ports
1 x PS/2 Keyboard/Mouse Combo port
1 x DVI
1 x S/PDIF Out (Optical)
2 x LAN(RJ45) port
10 -Channel Audio I/O
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x IEEE1394a
2 x IEEE1394b
Internal I/O Connectors
24-pin EATX Power connector
8-pin EATX +12V Power connector
4pin EZ_PLUG Power connector
CPU fan with PWM control
Chassis fan1 with Q-fan control
Chassis fan2 with Q-fan control
Chassis fan3 with Q-fan control
PWR fan
CD audio in
1 x COM port connector
3 x USB connectors support additional 6 USB ports
2 x USB 2.0/1.1 ports
TPM header
S/PDIF Out header
1 x MemOK Button
20-pinfront panel connector
