Technical Specifications
P2412H 24IN 16:9 WS FP DISP WLED 320-2776
Find the ideal blend of productivity-boosting performance, long-haul comfort and energy-conscientious features in a Full-HD large-screen monitor for businesses. Whether you're working multiple spreadsheets, reviewing patient files, analyzing legal cases or studying the stock market, the more you can see, the more you can do. The P2412H offers generous screen space, amazing visuals, and features the connectivity and flexibility you need to get to work... and keep on working.
*
MAIN SPECIFICATIONS

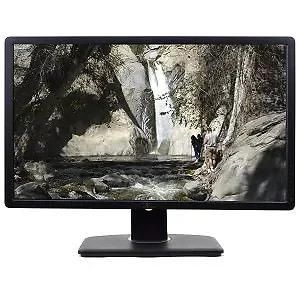

Product Description Dell Professional P2412H - LCD display - TFT - 24"
Device Type LCD display / TFT active matrix - WLED backlight
Color Black
Built-in Devices USB hub
Dimensions (WxDxH) 22.4 in x 7.1 in x 14.6 in - with stand
Weight 13.7 lbs
Localization Japan, United Kingdom, United States
Diagonal Size 24" - widescreen
Viewable Size 24"
Dot Pitch / Pixel Pitch 0.277 mm
Max Resolution 1920 x 1080 / 60 Hz
Video Format 1080p (FullHD)
Display Positions Adjustments Height, pivot (rotation), swivel, tilt
Color Support 16.7 million colors
Image Aspect Ratio 16:9
Response Time 5 ms
Image Brightness 250 cd/m2
Image Contrast Ratio 1000:1 / 2000000:1 (dynamic)
Digital Video Standard Digital Visual Interface (DVI)
Signal Input DVI, VGA
Microsoft Certification Compatible with Windows 7
Compliant Standards TCO Displays 5.2
Power AC 100/230 V ( 50/60 Hz )
Power Consumption Operational 50 Watt
Environmental Standards ENERGY STAR Qualified
General
Display Type LCD display / TFT active matrix - WLED backlight
TFT Technology TN
Built-in Devices USB hub
Dimensions With stand
Width 22.4 in
Depth 7.1 in
Height 14.6 in
Weight 13.7 lbs
Enclosure Color Black
Localization Japan, United Kingdom, United States
Display
Diagonal Size 24" - widescreen
Viewable Size 24"
Dot Pitch / Pixel Pitch 0.277 mm
Max Resolution 1920 x 1080 / 60 Hz
Video Format 1080p (FullHD)
Color Support 16.7 million colors
Max Sync Rate (V x H) 76 Hz x 83 kHz
Response Time 5 ms
Display Positions Adjustments Height, pivot (rotation), swivel, tilt
Display Screen Coating Anti-glare
Height Adjustment 5.1 in
Signal Input DVI, VGA
Features HDCP, 72% (CIE 1931) color gamut, 81% (CIE 1976) color gamut
Image Aspect Ratio 16:9
Image Brightness 250 cd/m2
Image Contrast Ratio 1000:1 / 2000000:1 (dynamic)
Image Max H-View Angle 170
Image Max V-View Angle 160
Video Input
Digital Video Standard Digital Visual Interface (DVI)
Expansion / Connectivity
Interfaces[ x DVI-D - 24 pin digital DVI 1 x VGA - 15 pin HD D-Sub (HD-15) 1 x USB upstream - 4 pin USB Type B 2 x USB downstream - 4 pin USB Type A
Miscellaneous
Included Accessories Stand
Cables Included[ x DVI cable - 6 ft 1 x VGA cable - 6 ft 1 x USB cable - 6 ft
Flat Panel Mount Interface Yes
Features Security lock slot (cable lock sold separately)
Compatible with Windows 7 "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards TCO Displays 5.2
Power
Voltage Required AC 100/230 V ( 50/60 Hz )
Power Consumption Operational 50 Watt
Power Consumption Stand by / Sleep 0.1 Watt
Software / System Requirements
Software Included Drivers & Utilities
Environmental Standards
ENERGY STAR Qualified Yes
Dimensions & Weight Details
Dimensions & Weight Details With stand - 22.4 in x 7.1 in x 14.6 in x 13.7 lbs Without stand - 22.4 in x 2.6 in x 13.2 in x 8.8 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 80% (non-condensing)
