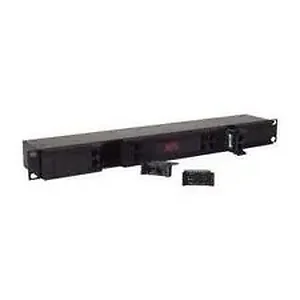

Apc - Schneider Electric P232R APC SURGE PROTECTION MODULE FOR RS232, REPLACEABLE, 1U, FOR USE WITH PRM4 OR PRM

Data line surges make up an overwhelming majority of all surge induced damages where the equipment was thought to be already protected but had a back door such as a modem line unprotected. Network interface cards, in particular, can be destroyed by relatively mild spikes.

According to Ethernet standards (IEEE 802.3), non-AC network electrical hazards include Direct contact between components and power or lightning circuits, static charge buildup on cables and component, high-energy transients coupled onto the local cabling system (those induced by other cables which are installed in the general proximity of network cables or lightning within a mile radius) and potential differences (even from building to building, between safety grounds to which components are connected.)

• REPLACEABLE, RACKMOUNT, 1U, RS232 SURGE PROTECTION MODULE
• User Manual

• Replaceable surge protection modules
• Data Lines Protected (multi-line only): 1-8
• It protects up to four ports per unit with RJ-45 connector
• Surge Response Time: 1 ns

• The P232R module is for use with RS232 communication equipment (RS232 multiports, asynchronous multiplexers, asynchronous printer spoolers, etc.)
