Technical Specifications

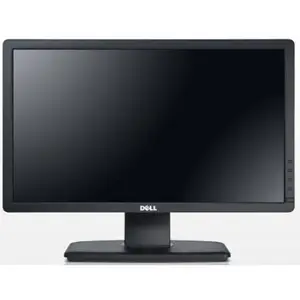

P2012H 20IN LCD WS FP MON W/LED 16:9 320-2942
Enjoy excellent performance, connectivity, picture quality with enhanced clarity on Professional P2012H 20-inch widescreen flat panel monitor from Dell. The dynamic contrast ratio of 2 million:1 (typical) provides to work in razor-sharp clarity, and experience smooth, jitter-free moving images. Get excellent clarity and rich images with x 900 at 60 Hz resolution with a color depth of 16.7 million colors. Additionally, high response time of 5 ms designed to reduce ghosting and deliver razor sharp images. Connect to your PC with a standard VGA cable, or enjoy exceptional image quality and color conformity with DVI-D (HDCP). You can easily plug and play with the two USB connectors. Be assured of reliable office performance and user comfort with the unique combination of energy-conscious and environmentally sound design of P2012H. Experience warm, vivid colors in virtually any setting with the LED-backlit panel and dynamic dimming on the P2012H. Thanks to the lower power consumption with LED technology, PowerNap and dynamic dimming, you can also see potential cost savings over time! The P2012H is designed to comply with the energy-efficiency standards, including ENERGY STAR, EPEAT Gold, TCO certified displays, CECP compliant. Additionally, the EPEAT Gold rating on the P2012H helps ensure that your organization stays aligned with the highest environmental standards. With all such impressive features and more, the P2012H is an ideal choice for your smart and modern lifestyle!
*
MAIN SPECIFICATIONS
Product Description Dell Professional P2012H - LCD display - TFT - 20" - with 3-Years Advanced Exchange Warranty
Device Type LCD display / TFT active matrix - LED backlight
Built-in Devices USB hub
Dimensions (WxDxH) 18.9 in x 7.2 in x 14.1 in - with stand
Diagonal Size 20" - widescreen
Viewable Size 20.0"
Dot Pitch / Pixel Pitch 0.277 mm
Max Resolution 1600 x 900 / 60 Hz
Display Positions Adjustments Height, pivot (rotation), swivel, tilt
Color Support 16.7 million colors
Image Aspect Ratio 16:9
Response Time 5 ms
Image Brightness 250 cd/m2
Image Contrast Ratio 1000:1 / 2000000:1 (dynamic)
Digital Video Standard Digital Visual Interface (DVI)
Signal Input DVI-D, VGA
Microsoft Certification Compatible with Windows 7
Power AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 45 Watt
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 3 years warranty
Bundled with 3-Years Advanced Exchange Warranty
General
Display Type LCD display / TFT active matrix - LED backlight
TFT Technology TN
Built-in Devices USB hub
Dimensions With stand
Width 18.9 in
Depth 7.2 in
Height 14.1 in
Bundled with 3-Years Advanced Exchange Warranty
Display
Diagonal Size 20" - widescreen
Viewable Size 20.0"
Dot Pitch / Pixel Pitch 0.277 mm
Max Resolution 1600 x 900 / 60 Hz
Color Support 16.7 million colors
Response Time 5 ms
Display Positions Adjustments Height, pivot (rotation), swivel, tilt
Display Screen Coating Anti-glare, 3H Hard Coating
Rotation Angle 90
Signal Input DVI-D, VGA
Features HDCP, 82% (CIE 1976) color gamut
Image Aspect Ratio 16:9
Image Brightness 250 cd/m2
Image Contrast Ratio 1000:1 / 2000000:1 (dynamic)
Image Max H-View Angle 170
Image Max V-View Angle 160
Video Input
Digital Video Standard Digital Visual Interface (DVI)
Expansion / Connectivity
Interfaces[ x VGA - 15 pin HD D-Sub (HD-15) 1 x DVI-D - 24 pin digital DVI 2 x Hi-Speed USB downstream - 4 pin USB Type A 1 x Hi-Speed USB upstream - 4 pin USB Type B
Miscellaneous
Features Security lock slot (cable lock sold separately), wall mountable, integrated cable management
Compatible with Windows 7 "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Power
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 45 Watt
Power Consumption Stand by / Sleep 0.1 Watt
Environmental Standards
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Dimensions & Weight Details
Dimensions & Weight Details With stand - 18.9 in x 7.2 in x 14.1 in Without stand - 6.4 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 80% (non-condensing)
