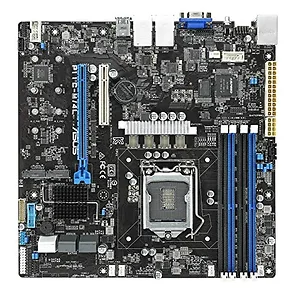

Asus P11C-M/4L Motherboard P11C-M/4L LGA1151 Intel C242 Maximum 64GB DDR4 PCIE SATA U ATX Retail

Processor / System Bus
1 x Socket LGA1151
Intel Xeon processor E-2100 family
Intel Core i3 processors
Intel Pentium processors
Intel Celeron processors Core Logic
Intel C242 Chipset Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 64GB UDIMM
Memory Type :
DDR4 2666/2400 UDIMM non ECC and with ECC
Memory Size :
16GB, 8GB, 4GB
Refer to support page for more information Expansion Slots
Total Slot : 2
Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 7 is occupied
Slot Location 7 : PCI-E x8 (Gen3 X8 Link)
Follow SSI Location Form Factor
U ATX (9.6"x9.6", 244mm x 244mm) ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASUS Control Center Storage
SATA Controller :
Intel C242 Chipset
6 x SATA3 6Gb/s ports
2 x M.2 connector(2242/2260/2280/22110) both SATA and PCIe mode
Intel Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) Networking
4 x Intel I210AT + 1 x Mgmt LAN Graphic
Aspeed AST2500 with 32MB VRAM On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x COM port
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header , Up to 2 Devices
1 x USB connector
5 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x VGA Header
2 x M.2 Connector
1 x Onboard header for optional management card Back I/O Ports
1 x External Serial Port
2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
1 x VGA Port
4 x GbE LAN + 1 x Mgmt LAN Management Solution
ASUS Control Center
Optional ASMB9-iKVM for KVM-over-Internet Environment
Operation temperature: 10^o - 35^o
Non operation temperature: -40^o - 70^o
Non operation humidity: 20% - 90% ( Non condensing) Accessories
Gift Box (1-in-1)
2 x Support CD
1 x I/O shield
6 x SATA 6G cables
1 x Plate for LGA1151
Bulk Pack (10-in-1)
2 x Support CD
1 x I/O shield
1 x Plate for LGA1151 Monitoring
CPU Temperature
Fan RPM Item Dimension (L"xW"xH")
14 x 12 x 4

Weight
5 lbs

Warranty Information
3 Year
