SKU: KL5WGEJGBP |  Mfg. Part: P10S-M  | UPC: 889349273708  |
 1 Reviews  |     Share

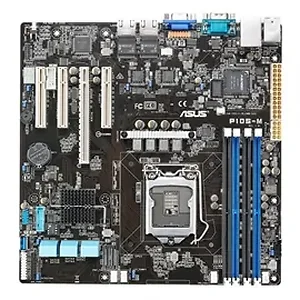

Asus P10S-M Micro ATX Motherboard for Core i3/Xeon E3-1200

Special Order
Ships in 1-2 weeks
Condition: New

$252.35  $340.67

AUTHORIZED
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The ASUS P10S-M is a versatile Micro ATX motherboard designed to support Intel's Core i3 and Xeon E3-1200 v5 processors. With a focus on performance and stability, it features support for up to 64GB of DDR4 memory, extensive storage options, and robust networking capabilities. Ideal for both server and workstation applications, it also supports advanced management solutions.

Technical Specifications

  • Processor/System Bus: 1 x Socket LGA1151 for Intel Xeon E3-1200 v5, Core i3, Pentium, and Celeron processors
  • Chipset: Intel C232 Chipset
  • Memory: 4 total slots, Maximum 64GB UDIMM, supports DDR4 2133 UDIMM
  • Expansion Slots: 4 total slots, including 1 x PCI-E x16 and 3 x PCI-E x8
  • Form Factor: uATX (9.6x9.6 inches / 244x244 mm)
  • Networking: 2 x Intel I210AT + 1 x Management LAN
  • Storage: 6 x SATA 3Gb/s ports with Intel Rapid Storage Technology Enterprise support
  • Graphics: Aspeed AST2400 with 32MB VRAM
  • Back I/O Ports: Includes external serial, USB 3.0/2.0 ports, VGA, and dual GbE LAN
  • Management and Monitoring: ASWM Enterprise, optional ASMB8-iKVM for KVM-Over-Internet, CPU temperature and fan RPM monitoring

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • ASUS
  • P10S-M
  • B01HHC02WO
  • 889349273708
  • New
  • 2.75 lbs
  • 12 X 12 X 12
  • Apr 10, 2026
  • Dec 23, 2016
Product Identifiers: Brand: Asus • Part #: P10S-M • UPC: 889349273708 • ASIN: B01HHC02WO

Asus P10S-M Micro ATX Motherboard for Core i3/Xeon E3-1200

Reviews for Asus P10S-M

$252.35
