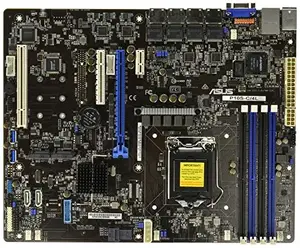

P10S-C/4L - Asus Motherboard P10S-C/4L LGA1151 C232 DDR4 PCI Express SATA USB ATX Retail

Processor / System Bus
1 x Socket LGA1151
Intel Xeon processor E3-1200 v5 product family
Intel Core i3 processors
Intel Pentium processors
Intel Celeron processors Core Logic
Intel C232 Chipset Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 64GB UDIMM
Memory Type :DDR4 2133 UDIMM non ECC and with ECC
Memory Size : 16GB Expansion Slots
Total Slot : 3
Slot Location 1 : PCI 32bit/33MHz
Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied
Slot Location 7 : MIO Slot for Audio card
Follow SSI Location Form Factor
ATX (12"x9.6", 305mm x 244mm) Storage
SATA Controller :
Intel C232
6 x SATA3 6Gb/s ports
2 x M.2 connector (2280/2260/2242)

SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) Networking
4 x Intel I210AT + 1 x Mgmt LAN Graphic
Aspeed AST2400 with 32MB VRAM On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header , Up to 2 Devices
2 x USB connector
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
2 x Serial Port Header
1 x Device Power Connector
1 x VGA Header
2 x M.2 Connector
1 x Onboard header for optional management card Back I/O Ports
2 x USB 3.0
2 x USB 2.0
1 x VGA Port
4 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/Mouse Monitoring
CPU Temperature
Fan RPM Item Dimension (L inchxW inchxH inch)
14 x 11 x 3

Weight
4.00lb

Warranty Information
3 Years with 1st Year ARS
