Technical Specifications
_OPTI 990 USFF i5/2.7 4GB 500GB W7P 64_

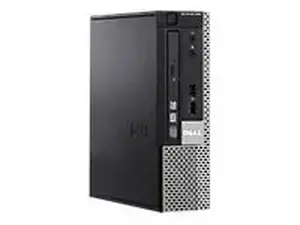

Dell OptiPlex 990 - USFF - 1 x Core i5 2500S / 2.7 GHz - RAM 4 GB - HDD 1 x 500 GB - DVD±RW - HD Graphics 2000 - Gigabit Ethernet - Windows 7 Professional 64-bit - Intel vPro Technology - Monitor : none - keyboard: English
Maximize your workspace while expanding your desktop with the Dell advanced port station. It provides convenient cable management and alleviates the need to reconnect peripherals each time you return to your desk. One simple connection provides access to multiple expansion ports - DVI, D/Bay connector for utilizing external D-Family media modules. In addition, you get workspace flexibility and viewing expandability with flat panel and dual-display support.
MAIN SPECIFICATIONS
Product Description Dell OptiPlex 990 - Core i5 2500S 2.7 GHz
Type Personal computer
Platform Technology Intel vPro Technology
Form Factor Ultra small form factor
Dimensions (WxDxH) 2.6 in x 9.4 in x 9.3 in
Weight 7.3 lbs
Localization English / United States
Processor 1 x Intel Core i5 (2nd Gen) 2500S / 2.7 GHz ( Quad-Core )
Cache Memory 6 MB L3 cache
Cache Per Processor 6 MB
RAM 4 GB DDR3 SDRAM - non-ECC - 1333 MHz - PC3-10600
Storage Controller Serial ATA
Hard Drive 1 x 500 GB - standard - Serial ATA-300
Optical Storage DVD±RW
Monitor None.
Graphics Controller Intel HD Graphics 2000 Dynamic Video Memory Technology 5.0
Audio Output Sound card
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet
OS Provided Microsoft Windows 7 Professional 64-bit Edition
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Environmental Standards ENERGY STAR Qualified , Blue Angel , EPEAT Gold
Manufacturer Warranty 3 years warranty - on-site
EXTENDED SPECIFICATIONS
General
Platform Technology Intel vPro Technology
Type Personal computer
Recommended Use Small business, corporate business
Product Form Factor Ultra small form factor
Width 2.6 in
Depth 9.4 in
Height 9.3 in
Weight 7.3 lbs
Localization English / United States
Processor
Type Intel Core i5 (2nd Gen) 2500S / 2.7 GHz
Number of Cores Quad-Core
64-bit Computing Yes
Installed Qty 1
Max Supported Qty 1
Cache Memory
Type L3 cache
Installed Size 6 MB
Cache Per Processor 6 MB
Mainboard
Chipset Type Intel Q67 Express
RAM
Installed Size 4 GB
Technology DDR3 SDRAM - non-ECC
Memory Speed 1333 MHz
Memory Specification Compliance PC3-10600
Form Factor DIMM 240-pin
Configuration Features 1 x 4 GB
Storage Controller
Type Serial ATA - integrated
Storage
Hard Drive 1 x 500 GB - standard - Serial ATA-300 - DataBurst Cache
Optical Storage
Type DVD±RW
Monitor
Monitor Type None.
Graphics Controller
Type Integrated
Graphics Processor Intel HD Graphics 2000 Dynamic Video Memory Technology 5.0
Audio Output
Type Sound card - integrated
Speaker(s) Dell Business Audio Speaker
Input Device
Type Mouse, keyboard
Keyboard
Interface USB
Localization & Layout English
Mouse
Technology Optical
Interface USB
Networking
Networking Network adapter - integrated
Ethernet Controller(s) Intel 82579LM
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Expansion Bays 1 (total) / 0 (free) x front accessible - 5.25" Slim Line 1 (total) / 0 (free) x internal - 2.5"
Expansion Slot(s) 1 (total) / 0 (free) x processor - LGA1155 Socket 1 (total) / 0 (free) x memory - DIMM 240-pin 1 (total) / 1 (free) x PCI Express Mini Card
Interfaces 7 x Hi-Speed USB - 4 pin USB Type A 1 x serial - RS-232 - 9 pin D-Sub (DB-9) 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x audio / video - DisplayPort - 20 pin DisplayPort 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x audio - line-in - mini-phone stereo 3.5 mm 1 x microphone - input - mini-phone 3.5 mm 2 x audio - line-out - mini-phone stereo 3.5 mm
Miscellaneous
Features Security lock slot (cable lock sold separately), active Power Factor Correction (PFC)
Power
Device Type Power supply
Power Provided 200 Watt
Operating System / Software
OS Provided Microsoft Windows 7 Professional 64-bit Edition
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Software Cyberlink PowerDVD , Roxio Creator
Environmental Standards
EPEAT Compliant EPEAT Gold
ENERGY STAR Qualified Yes
Blue Angel Compliant Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years - on-site - response time: next business day
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 - 80%
