Technical Specifications
_OPTI 7010 DT I5/3.3 4GB 500GB W7P 64_

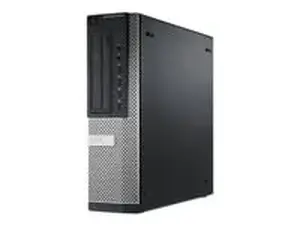

Dell OptiPlex 7010 - DT - 1 x Core i5 3550 / 3.3 GHz - RAM 4 GB - HDD 1 x 500 GB - DVD±RW - HD Graphics 2500 - Gigabit Ethernet - Windows 7 Professional 64-bit - Monitor : none
Revitalize your workforce with the Dell OptiPlex 7010, designed for advanced productivity, desktop virtualization and outstanding IT control.
MAIN SPECIFICATIONS
Product Description Dell OptiPlex 7010 - Core i5 3550 3.3 GHz
Type Personal computer
Form Factor Desktop
Dimensions (WxDxH) 4 in x 16.1 in x 14.2 in
Weight 17.4 lbs
Processor 1 x Intel Core i5 (3rd Gen) 3550 / 3.3 GHz ( Quad-Core )
Cache Memory 6 MB L3 cache
Cache Per Processor 6 MB
RAM 4 GB (installed) / 16 GB (max) - DDR3 SDRAM - 1600 MHz - PC3-12800
Storage Controller Serial ATA ( Serial ATA-600 ) ; Serial ATA ( Serial ATA-300 )
Hard Drive 1 x 500 GB - standard
Optical Storage DVD±RW
Monitor None.
Graphics Controller Intel HD Graphics 2500 Dynamic Video Memory Technology 5.0
Audio Output Sound card - stereo
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet
Power AC 120/230 V ( 50/60 Hz )
OS Provided Microsoft Windows 7 Professional 64-bit Edition
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 3 years warranty - on-site
EXTENDED SPECIFICATIONS
General
Type Personal computer
Recommended Use Small business, corporate business
Product Form Factor Desktop
Width 4 in
Depth 16.1 in
Height 14.2 in
Weight 17.4 lbs
Processor
Type Intel Core i5 (3rd Gen) 3550 / 3.3 GHz
Number of Cores Quad-Core
64-bit Computing Yes
Installed Qty 1
Max Supported Qty 1
Cache Memory
Type L3 cache
Installed Size 6 MB
Cache Per Processor 6 MB
Mainboard
Chipset Type Intel Q77 Express
RAM
Installed Size 4 GB / 16 GB (max)
Technology DDR3 SDRAM
Memory Speed 1600 MHz
Memory Specification Compliance PC3-12800
Form Factor DIMM 240-pin
Features Dual channel memory architecture
Storage Controller
Type 1 x Serial ATA - integrated
Controller Interface Type Serial ATA-600
Channel Qty 2
Storage Controller (2nd)
Type 1 x Serial ATA - integrated
Controller Interface Type Serial ATA-300
Channel Qty 2
Storage
Hard Drive 1 x 500 GB - standard
Optical Storage
Type DVD±RW - Serial ATA
Read Speed 48x (CD) / 16x (DVD)
Monitor
Monitor Type None.
Graphics Controller
Type Integrated
Graphics Processor Intel HD Graphics 2500 Dynamic Video Memory Technology 5.0
Digital Video Standard DisplayPort
Audio Output
Type Sound card - integrated
Sound Output Mode Stereo
Max Sampling Rate 192 kHz
Compliant Standards High Definition Audio
Networking
Networking Network adapter - integrated
Ethernet Controller(s) Intel 82579LM
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Features Wake on LAN (WoL), PXE support
Expansion / Connectivity
Expansion Bays 1 (total) / 0 (free) x front accessible - 5.25" x 1/2H 1 (total) / 0 (free) x internal - 3.5" x 1/3H
Expansion Slot(s) 1 (total) / 0 (free) x processor - LGA1155 Socket 4 (total) / 2 (free) x memory - DIMM 240-pin 1 (total) / 1 (free) x PCI Express x16 1 (total) / 1 (free) x PCI Express x16 ( x4 mode ) 1 (total) / 1 (free) x PCI Express x1 1 (total) / 1 (free) x PCI
Interfaces 6 x Hi-Speed USB - 4 pin USB Type A ( 2 front, 4 rear ) 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 2 x display / video - DisplayPort - 20 pin DisplayPort 1 x microphone - input - mini-phone 3.5 mm ( 1 in front ) 1 x audio - line-in/microphone - mini-phone stereo 3.5 mm 2 x audio - line-out/headphones - mini-phone stereo 3.5 mm ( 1 front,[ rear ) 1 x serial - RS-232 - 9 pin D-Sub (DB-9) 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ( 2 front, 2 rear )
Miscellaneous
Features Security lock slot (cable lock sold separately), active Power Factor Correction (PFC)
Compliant Standards RoHS, WEEE
Power
Device Type Power supply
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Provided 250 Watt
Operating System / Software
OS Provided Microsoft Windows 7 Professional 64-bit Edition
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Software Microsoft Office 2010 Starter
Environmental Standards
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years - on-site - response time: next business day
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 - 80% (non-condensing)
