Technical Specifications
_OPTI 3010 SFF I5/3.1 4GB 250GB W7P 64_

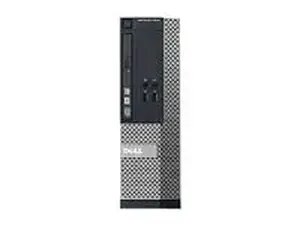

Dell OptiPlex 3010 - SFF - 1 x Core i5 3450 / 3.1 GHz - RAM 4 GB - HDD 1 x 250 GB - DVD±RW - HD Graphics 2500 - Gigabit Ethernet - Windows 7 Professional 64-bit - Monitor : none
Inspire your workforce with the Dell OptiPlex 3010, designed for essential productivity, stable life cycles and simple IT control.
MAIN SPECIFICATIONS
Product Description Dell OptiPlex 3010 - Core i5 3450 3.1 GHz
Type Personal computer
Form Factor Small form factor
Dimensions (WxDxH) 3.6 in x 12.3 in x 11.4 in
Weight 12.6 lbs
Processor 1 x Intel Core i5 (3rd Gen) 3450 / 3.1 GHz ( Quad-Core )
Processor Main Features Intel Virtualization Technology
Cache Memory 6 MB L3 cache
Cache Per Processor 6 MB
RAM 4 GB (installed) / 8 GB (max) - DDR3 SDRAM
Storage Controller Serial ATA ( Serial ATA-300 )
Hard Drive 1 x 250 GB - standard
Optical Storage DVD±RW
Monitor None.
Graphics Controller Intel HD Graphics 2500 Dynamic Video Memory Technology 5.0
Audio Output Sound card - stereo
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet
Power AC 120/230 V ( 50/60 Hz )
OS Provided Microsoft Windows 7 Professional 64-bit Edition
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 3 years warranty
EXTENDED SPECIFICATIONS
General
Type Personal computer
Recommended Use Small business, corporate business
Product Form Factor Small form factor
Width 3.6 in
Depth 12.3 in
Height 11.4 in
Weight 12.6 lbs
Processor
Type Intel Core i5 (3rd Gen) 3450 / 3.1 GHz
Number of Cores Quad-Core
64-bit Computing Yes
Installed Qty 1
Max Supported Qty 1
Processor Main Features Intel Virtualization Technology
Cache Memory
Type L3 cache
Installed Size 6 MB
Cache Per Processor 6 MB
Mainboard
Chipset Type Intel H61 Express
RAM
Installed Size 4 GB / 8 GB (max)
Technology DDR3 SDRAM
Form Factor DIMM 240-pin
Features Dual channel memory architecture
Storage Controller
Type 1 x Serial ATA - integrated
Controller Interface Type Serial ATA-300
Channel Qty 2
Storage
Hard Drive 1 x 250 GB - standard - 7200 rpm
Optical Storage
Type DVD±RW - Serial ATA
Read Speed 24x (CD) / 8x (DVD)
Monitor
Monitor Type None.
Graphics Controller
Type Integrated
Graphics Processor Intel HD Graphics 2500 Dynamic Video Memory Technology 5.0
Digital Video Standard High-Definition Multimedia Interface (HDMI)
Audio Output
Type Sound card - integrated
Sound Output Mode Stereo
Max Sampling Rate 192 kHz
Compliant Standards High Definition Audio
Networking
Networking Network adapter - integrated
Ethernet Controller(s) Realtek RTL8111E
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Features Wake on LAN (WoL), PXE support
Expansion / Connectivity
Expansion Bays 1 (total) / 0 (free) x front accessible - 5.25" Slim Line 1 (total) / 0 (free) x internal - 3.5" x 1/3H
Expansion Slot(s) 1 (total) / 0 (free) x processor - LGA1155 Socket 2 (total) / 1 (free) x memory - DIMM 240-pin 1 (total) / 1 (free) x PCI Express 2.0 x16 1 (total) / 1 (free) x PCI Express 2.0 x1
Interfaces 8 x Hi-Speed USB - 4 pin USB Type A ( 2 front, 6 rear ) 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x audio / video - HDMI - 19 pin HDMI Type A 1 x microphone - input - mini-phone 3.5 mm ( 1 in front ) 1 x audio - line-in/microphone - mini-phone stereo 3.5 mm 2 x audio - line-out/headphones - mini-phone stereo 3.5 mm ( 1 front,[ rear )
Miscellaneous
Features Security lock slot (cable lock sold separately)
Compliant Standards RoHS, WEEE, CECP
Power
Device Type Power supply
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Provided 240 Watt
Operating System / Software
OS Provided Microsoft Windows 7 Professional 64-bit Edition
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Environmental Standards
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years - response time: next business day
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 - 80% (non-condensing)
