Technical Specifications
OPTI 980SFF CI3/3.2 2GB 320GB DVDR 3YR W7P NB
The OptiPlex 980 is Dell's powerful, expandable desktop solution designed for challenging, complex IT environments. With an up to 35% increase in performance over prior generations of OptiPlex desktops, the OptiPlex 980 delivers the kind of premier technology that can simplify systems management, minimize power consumption and help build a better enterprise. The OptiPlex 980 equips your workforce with more productivity tools. OptiPlex 980 users can leverage the exclusive OptiPlex ON for instant read access to Outlook. Advanced Intel vPro remote management technology, along with the vPro KVM remote control feature expands management capabilities. OptiPlex 980 can optimize the work environment with its exclusive EcoKit that reduces system noise by 50% and delivers a 25% recycled system content.
*
MAIN SPECIFICATIONS

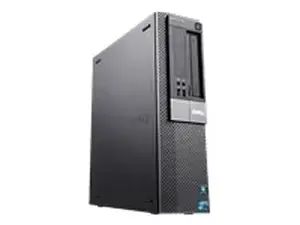

Product Description Dell OptiPlex 980 - Core i3 550 3.2 GHz
Type Personal computer
Form Factor Small form factor
Dimensions (WxDxH) 3.5 in x 12.9 in x 11.8 in
Weight 13 lbs
Localization English / United States
Processor 1 x Intel Core i3 550 / 3.2 GHz ( Dual-Core )
Cache Memory 4 MB L3 cache
Cache Per Processor 4 MB
RAM 2 GB (installed) / 16 GB (max) - DDR3 SDRAM - non-ECC - 1333 MHz - PC3-10600
Storage Controller Serial ATA ( Serial ATA-300 )
Hard Drive 1 x 320 GB - standard - Serial ATA-300
Optical Storage DVD±RW
Monitor None.
Graphics Controller Intel GMA 4500 Dynamic Video Memory Technology 5.0
Audio Output Sound card - 5.1 channel surround
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet
Power AC 120/230 V ( 50/60 Hz )
OS Provided Microsoft Windows 7 Professional
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Environmental Standards ENERGY STAR Qualified , EPEAT Gold
Manufacturer Warranty 3 years warranty - on-site
General
Type Personal computer
Recommended Use Small business, corporate business
Product Form Factor Small form factor
Width 3.5 in
Depth 12.9 in
Height 11.8 in
Weight 13 lbs
Localization English / United States
Processor
Type Intel Core i3 550 / 3.2 GHz
Multi-Core Technology Dual-Core
64-bit Computing Yes
Installed Qty 1
Max Supported Qty 1
Cache Memory
Type L3 cache
Installed Size 4 MB
Cache Per Processor 4 MB
Mainboard
Chipset Type Intel Q57 Express
Data Bus Speed 1333 MHz
RAM
Installed Size 2 GB / 16 GB (max)
Technology DDR3 SDRAM - non-ECC
Memory Speed 1333 MHz
Memory Specification Compliance PC3-10600
Features Dual channel memory architecture
Configuration Features 2 x 1 GB
Storage Controller
Type Serial ATA - integrated
Controller Interface Type Serial ATA-300
Storage
Hard Drive 1 x 320 GB - standard - Serial ATA-300 - DataBurst Cache
Optical Storage
Type DVD±RW - Serial ATA
Monitor
Monitor Type None.
Graphics Controller
Type Integrated
Graphics Processor / Vendor Intel GMA 4500 Dynamic Video Memory Technology 5.0
Digital Video Standard Digital Visual Interface (DVI), DisplayPort
Audio Output
Type Sound card - integrated
Sound Output Mode 5.1 channel surround
Compliant Standards High Definition Audio
Input Device
Type Mouse, keyboard
Keyboard
Interface USB
Mouse
Technology Optical
Interface USB
Networking
Networking Network adapter - integrated
Ethernet Controller(s) Intel 82578DM
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Expansion Bays[ (total) / 0 (free) x front accessible - 5.25" Slim Line 1 (total) / 1 (free) x front accessible - 3.5" Slim Line 1 (total) / 0 (free) x internal - 3.5"
Expansion Slot(s)[ (total) / 1 (free) x PCI Express x16 - low-profile 1 (total) / 1 (free) x PCI - low-profile 1 (total) / 0 (free) x processor 4 (total) / 2 (free) x memory
Interfaces[ x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 8 x Hi-Speed USB - 4 pin USB Type A ( 2 front, 6 rear ) 1 x serial - RS-232 - 9 pin D-Sub (DB-9) 1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x display / video - DisplayPort - 20 pin DisplayPort 1 x storage - eSATA-300 - 7 pin external Serial ATA 2 x headphones / speakers - line-out - mini-phone stereo 3.5 mm 2 x microphone - line-in - mini-phone stereo 3.5 mm 1 x display / video - DVI-Digital - 24 pin digital DVI ( with adapter )
Miscellaneous
Cables Included DisplayPort-DVI adapter
Power
Device Type Power supply
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Provided 235 Watt
Operating System / Software
OS Provided Microsoft Windows 7 Professional
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Software Trend Micro Worry-Free Business Security Service (30 days trial)
Environmental Standards
EPEAT Compliant EPEAT Gold
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years - on-site - response time: next business day
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 - 80%
