Technical Specifications
OPTI 780 MT C2D/3.0 2GB 320G DVDR 3Y W7P VPRO NB
The Dell OptiPlex 780 is ideal for environments that demand a durable, stable platform, comprehensive security control, and superior management capability. The OptiPlex 780 provides the kind of solution that IT departments need to help simplify operations and drive cost efficiency in their growing and complex IT environments. Whether your workforce is local, national or global, the Dell OptiPlex 780 offers easy serviceability, standardized configurations and advanced remote-management capabilities that can help IT work more efficiently.
*
MAIN SPECIFICATIONS

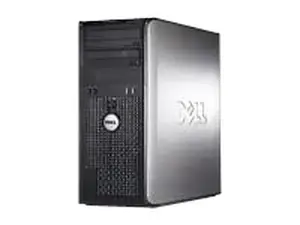

Product Description Dell OptiPlex 780 - Core 2 Duo E8400 3 GHz
Type Personal computer
Platform Technology Intel vPro Technology
Form Factor Mini tower
Dimensions (WxDxH) 7.4 in x 17 in x 16.1 in
Weight 25.8 lbs
Localization English / United States
Processor 1 x Intel Core 2 Duo E8400 / 3 GHz ( Dual-Core )
Processor Main Features Intel Virtualization Technology
Cache Memory 6 MB L2 cache
Cache Per Processor 6 MB
RAM 2 GB (installed) / 16 GB (max) - DDR3 SDRAM - non-ECC - 1333 MHz - PC3-10600
Storage Controller Serial ATA ( Serial ATA-300 )
Hard Drive 1 x 320 GB - standard - Serial ATA-300
Optical Storage DVD±RW
Monitor None.
Graphics Controller Intel GMA 4500 Dynamic Video Memory Technology 5.0
Audio Output Sound card - stereo
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet
Power AC 120/230 V ( 50/60 Hz )
OS Provided Microsoft Windows 7 Professional
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 3 years warranty - on-site
General
Platform Technology Intel vPro Technology
Type Personal computer
Recommended Use Small business, corporate business
Product Form Factor Mini tower
Width 7.4 in
Depth 17 in
Height 16.1 in
Weight 25.8 lbs
Localization English / United States
Processor
Type Intel Core 2 Duo E8400 / 3 GHz
Multi-Core Technology Dual-Core
64-bit Computing Yes
Installed Qty 1
Max Supported Qty 1
Processor Main Features Intel Virtualization Technology
Cache Memory
Type L2 cache
Installed Size 6 MB
Cache Per Processor 6 MB
Mainboard
Chipset Type Intel Q45 Express
Data Bus Speed 1066 MHz
RAM
Installed Size 2 GB / 16 GB (max)
Technology DDR3 SDRAM - non-ECC
Memory Speed 1333 MHz
Memory Specification Compliance PC3-10600
Features Dual channel memory architecture
Configuration Features 1 x 2 GB
Storage Controller
Type Serial ATA - integrated
Controller Interface Type Serial ATA-300
Storage
Hard Drive 1 x 320 GB - standard - Serial ATA-300
Optical Storage
Type DVD±RW - Serial ATA
Monitor
Monitor Type None.
Graphics Controller
Type Integrated
Graphics Processor / Vendor Intel GMA 4500 Dynamic Video Memory Technology 5.0
Digital Video Standard Digital Visual Interface (DVI), DisplayPort
Audio Output
Type Sound card - integrated
Sound Output Mode Stereo
Max Sample Rate 192 kHz
Compliant Standards High Definition Audio
Keyboard
Interface USB
Mouse
Technology Optical
Interface USB
Networking
Networking Network adapter - integrated
Ethernet Controller(s) Intel 82567LM
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Expansion Bays\ (total) / 1 (free) x front accessible - 5.25" 1 (total) / 1 (free) x front accessible - 3.5" 2 (total) / 1 (free) x internal - 3.5"
Expansion Slot(s)[ (total) / 1 (free) x PCI Express x16 - full-height 2 (total) / 2 (free) x PCI - full-height 1 (total) / 0 (free) x processor - LGA775 Socket 4 (total) / 2 (free) x memory - DIMM 240-pin 1 (total) / 1 (free) x PCI Express x1 - full-height
Interfacesb x Hi-Speed USB - 4 pin USB Type A ( 2 front, 6 rear ) 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x serial - RS-232 - 9 pin D-Sub (DB-9) 1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x audio - line-in - mini-phone stereo 3.5 mm 1 x audio - line-out - mini-phone stereo 3.5 mm 1 x microphone - input - mini-phone 3.5 mm ( 1 in front ) 1 x headphones - output - mini-phone stereo 3.5 mm ( 1 in front ) 1 x display / video - DisplayPort - 20 pin DisplayPort 1 x storage - eSATA - 7 pin external Serial ATA 1 x display / video - DVI-Digital - 24 pin digital DVI ( with adapter )
Miscellaneous
Cables Included DisplayPort-DVI adapter
Features Active Power Factor Correction (PFC)
Power
Device Type Power supply
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Provided 305 Watt
Operating System / Software
OS Provided Microsoft Windows 7 Professional
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Software Cyberlink PowerDVD , Trend Micro Worry-Free Business Security Service (30 days trial), Roxio Creator
Environmental Standards
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years - on-site - response time: next business day
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 - 80%
