Technical Specifications

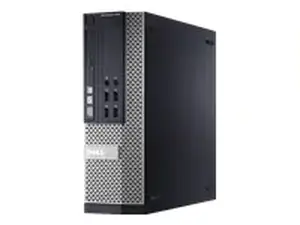

OPTI 990 SFF CI3/3.1 2GB 500GB DVDR VPRO W7P
The premier OptiPlex 990 is a powerful and flexible desktop solution designed for best-in-class performance and collaboration, while enabling business-class control. It delivers premier technology that helps simplify systems management and security. Get the job done quickly with the second generation Intel Core processor and quad-monitor solutions. Save IT time and money with this desktop PC delivering more flexibility, performance and manageability. This secure and easy-to-manage desktop integrates seamlessly into virtually any office environment.
*
MAIN SPECIFICATIONS
Product Description Dell OptiPlex 990 - Core i3 2100 3.1 GHz
Type Personal computer
Platform Technology Intel vPro Technology
Form Factor Small form factor
Dimensions (WxDxH) 3.7 in x 12.3 in x 11.8 in
Weight 13 lbs
Localization English / United States
Processor 1 x Intel Core i3 2100 / 3.1 GHz ( Quad-Core )
Cache Memory 3 MB L2 cache
Cache Per Processor 3 MB
RAM 2 GB (installed) / 16 GB (max) - DDR3 SDRAM - non-ECC - 1333 MHz - PC3-10600
Storage Controller ( Serial ATA-300 )
Hard Drive 1 x 500 GB - standard - Serial ATA-600
Optical Storage DVD+RW
Monitor None.
Graphics Controller Intel HD Graphics 2000 Dynamic Video Memory Technology 5.0
Audio Output Sound card
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet
OS Provided Microsoft Windows 7 Professional
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Environmental Standards ENERGY STAR Qualified , Blue Angel , EPEAT Gold
Manufacturer Warranty 3 years warranty - on-site
General
Platform Technology Intel vPro Technology
Type Personal computer
Recommended Use Small business, corporate business
Product Form Factor Small form factor
Embedded Security Trusted Platform Module (TPM 1.2) Security Chip
Width 3.7 in
Depth 12.3 in
Height 11.8 in
Weight 13 lbs
Localization English / United States
Processor
Type Intel Core i3 2100 / 3.1 GHz
Multi-Core Technology Quad-Core
64-bit Computing Yes
Installed Qty 1
Max Supported Qty 1
Cache Memory
Type L2 cache
Installed Size 3 MB
Cache Per Processor 3 MB
Mainboard
Chipset Type Intel Q67 Express
RAM
Installed Size 2 GB / 16 GB (max)
Technology DDR3 SDRAM - non-ECC
Memory Speed 1333 MHz
Memory Specification Compliance PC3-10600
Configuration Features 2 x 1 GB
Storage Controller
Type Integrated
Controller Interface Type Serial ATA-300
Storage
Hard Drive 1 x 500 GB - standard - Serial ATA-600 - DataBurst Cache
Optical Storage
Type DVD+RW
Read Speed 24x (CD) / 8x (DVD)
Write Speed 24x (CD) / 8x (DVD)
Monitor
Monitor Type None.
Graphics Controller
Type Integrated
Graphics Processor / Vendor Intel HD Graphics 2000 Dynamic Video Memory Technology 5.0
Digital Video Standard DisplayPort
Audio Output
Type Sound card - integrated
Speaker(s) Dell Business Audio Speaker
Input Device
Type Mouse, keyboard
Keyboard
Keyboard Name Dell Multimedia Pro Keyboard
Interface USB
Localization and Layout English
Mouse
Technology Optical
Interface USB
Networking
Networking Network adapter - integrated
Ethernet Controller(s) Intel 82579LM
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Expansion Bays[ (total) / 0 (free) x front accessible - 5.25" Slim Line 0 (total) / 0 (free) x internal - 3.5"
Expansion Slot(s)[ (total) / 0 (free) x processor Memory
InterfacesΎ x Hi-Speed USB - 4 pin USB Type A 1 x serial - 9 pin D-Sub (DB-9) 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x audio / video - DisplayPort - 20 pin DisplayPort 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x audio - line-in - mini-phone stereo 3.5 mm 1 x microphone - input - mini-phone 3.5 mm 2 x audio - line-out - mini-phone stereo 3.5 mm
Miscellaneous
Features Security lock slot (cable lock sold separately)
Power
Device Type Power supply
Power Provided 240 Watt
Operating System / Software
OS Provided Microsoft Windows 7 Professional - English
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Software Cyberlink PowerDVD , Roxio Creator
Environmental Standards
EPEAT Compliant EPEAT Gold
ENERGY STAR Qualified Yes
Blue Angel Compliant Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years - on-site - response time: next business day
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 122 °F
Humidity Range Operating 20 - 80%
