Technical Specifications
OPTI 990 MT CI7/3.4 4G 500G 1GB HD6670 W7P64
The premier OptiPlex 990 is a powerful and flexible desktop solution designed for best-in-class performance and collaboration, while enabling business-class control. It delivers premier technology that helps simplify systems management and security. Get the job done quickly with the second generation Intel Core processor and quad-monitor solutions. Save IT time and money with this desktop PC delivering more flexibility, performance and manageability. This secure and easy-to-manage desktop integrates seamlessly into virtually any office environment.

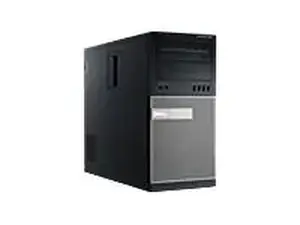

Dell OptiPlex 990 - MT - 1 x Core i7 2600 / 3.4 GHz - RAM 4 GB - HDD 500 GB - DVD±RW - Radeon HD 6670 - Gigabit Ethernet - Windows 7 Professional 64-bit - Intel vPro Technology - Monitor : none - keyboard: English
*
MAIN SPECIFICATIONS
Product Description Dell OptiPlex 990 - Core i7 2600 3.4 GHz
Type Personal computer
Platform Technology Intel vPro Technology
Form Factor Mini tower
Dimensions (WxDxH) 6.9 in x 16.4 in x 14.2 in
Weight 20.1 lbs
Localization English / United States
Processor 1 x Intel Core i7 2600 / 3.4 GHz ( 3.8 GHz ) ( Quad-Core )
Processor Main Features Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2
Cache Memory 8 MB
Cache Per Processor 8 MB
RAM 4 GB (installed) / 16 GB (max) - DDR3 SDRAM - non-ECC - 1333 MHz - PC3-10600
Storage Controller Serial ATA ( Serial ATA-600 / Serial ATA-300 )
Hard Drive 500 GB - standard - Serial ATA-600
Optical Storage DVD±RW
Monitor None.
Graphics Controller PCI Express x16 - AMD Radeon HD 6670
Video Memory 1 GB
Audio Output Sound card
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet
Power AC 120/230 V ( 50/60 Hz )
OS Provided Microsoft Windows 7 Professional 64-bit Edition
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Environmental Standards ENERGY STAR Qualified , Blue Angel , EPEAT Gold
Manufacturer Warranty 3 years warranty - on-site
General
Platform Technology Intel vPro Technology
Type Personal computer
Recommended Use Small business, corporate business
Product Form Factor Mini tower
Built-in Devices Speaker
Embedded Security Trusted Platform Module (TPM 1.2) Security Chip
Width 6.9 in
Depth 16.4 in
Height 14.2 in
Weight 20.1 lbs
Localization English / United States
Processor
Type Intel Core i7 2600 / 3.4 GHz
Max Turbo Speed 3.8 GHz
Number of Cores Quad-Core
64-bit Computing Yes
Installed Qty 1
Max Supported Qty 1
Processor Main Features Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2
Cache Memory
Installed Size 8 MB
Cache Per Processor 8 MB
Mainboard
Chipset Type Intel Q67 Express
RAM
Installed Size 4 GB / 16 GB (max)
Technology DDR3 SDRAM - non-ECC
Memory Speed 1333 MHz
Memory Specification Compliance PC3-10600
Form Factor DIMM 240-pin
Features Unbuffered
Configuration Features 2 x 2 GB
Storage Controller
Type 1 x Serial ATA - integrated
Controller Interface Type Serial ATA-600 / Serial ATA-300
Channel Qty 4
Storage
Hard Drive 500 GB - standard - Serial ATA-600 - 7200 rpm - DataBurst Cache
Optical Storage
Type DVD±RW - Serial ATA
Read Speed 48x (CD) / 16x (DVD)
Write Speed 48x (CD) / 16x (DVD)
Monitor
Monitor Type None.
Graphics Controller
Type PCI Express x16 - plug-in card
Graphics Processor AMD Radeon HD 6670
Video Memory 1 GB
Digital Video Standard Digital Visual Interface (DVI), High-Definition Multimedia Interface (HDMI), DisplayPort
Audio Output
Type Sound card - integrated
Max Sampling Rate 192 kHz
Compliant Standards High Definition Audio
Speaker(s) Dell Business Audio Speaker
Input Device
Type Mouse, keyboard
Keyboard
Keyboard Name Dell Multimedia Pro Keyboard
Interface USB
Localization & Layout English
Mouse
Technology Optical
Interface USB
Networking
Networking Network adapter - integrated
Ethernet Controller(s) Intel 82579LM
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Features Remote Wakeup, PXE support
Expansion / Connectivity
Expansion Bays\ (total) / 1 (free) x front accessible - 5.25" 2 (total) / 1 (free) x internal - 3.5"
Expansion Slot(s)[ (total) / 0 (free) x processor - LGA1155 Socket 4 (total) / 2 (free) x memory - DIMM 240-pin 1 (total) / 1 (free) x PCI Express x16 - full-height 1 (total) / 1 (free) x PCI Express x16 - full-height ( x4 mode ) 1 (total) / 1 (free) x PCI Express x1 - full-height 1 (total) / 1 (free) x PCI - full-height
InterfacesΎ x Hi-Speed USB - 4 pin USB Type A ( 4 front, 6 rear ) 1 x serial - 9 pin D-Sub (DB-9) 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x display / video - DisplayPort - 20 pin DisplayPort 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x audio - line-in - mini-phone stereo 3.5 mm 1 x microphone - input - mini-phone 3.5 mm 2 x audio - line-out - mini-phone stereo 3.5 mm ( 1 front, 1 rear ) 1 x display / video - DVI-Analog/Digital (dual link) - 29 pin combined DVI 1 x audio / video - HDMI - 19 pin HDMI Type A
Miscellaneous
Features Security lock slot (cable lock sold separately), system password, Intel Active Management Technology (iAMT), Intel Standard Manageability
Compliant Standards RoHS, WEEE
Power
Device Type Power supply
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Provided 265 Watt
Operating System / Software
OS Provided Microsoft Windows 7 Professional 64-bit Edition - English
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Software Cyberlink PowerDVD , Roxio Creator, Dell Data Protection
Environmental Standards
EPEAT Compliant EPEAT Gold
ENERGY STAR Qualified Yes
Blue Angel Compliant Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years - on-site - response time: next business day
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 122 °F
Humidity Range Operating 20 - 80% (non-condensing)
