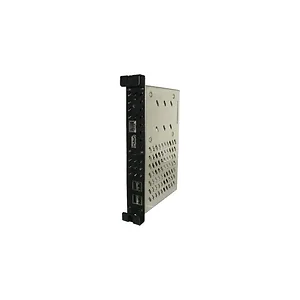

Sharp Nec OPS-PCIC-5WH-WF NEC OPS-PCIC-5WH Open Pluggable Specification (OPS) PC for NEC Large-Screen Displays

Specifications

• Mfr Part Number: OPS-PCIC-5WH
• Features:
  • No external connections required - PC signal, audio and control signals all passed internally from display to OPS device
  • Commanding 2.5 GHz Dual-Core Intel i5 CPU, utilizing the Intel Sandy Bridge architecture, provides enough processing power to run the highest end content with uninterrupted playback
  • Durable and protected with an all-stainless steel chassis and integrated redundant cooling fans to protect the unit during installation, operation and service
  • Flexible internal configuration with choices of solid state or disk drives
  • Full 1080p playback ensures reliable, crisp and clear content
  • DisplayPort output allows for multi-display support
  • Four USB ports allow you to connect compatible devices
  • Full networking capabilities through the integrated Ethernet connection
• CPU: 2.5 GHz Intel Dual Core i5 (2510E)
• GPU: Integrated HD3000
• RAM: 4GB DDR3
• Hard Drive: 500GB
• Video Output: Internal DVI, External DisplayPort
• Audio Output: Internal Stereo, External DisplayPort
• Network Connections: Gigabit Ethernet
• Control I/O: 4x USB 2.0 Ports
• Video Format Support: 1080p, MPEG/2, H.264, WM9
• Operating System: Windows 7 Embedded
• Compatibility:
  • NEC P Series, V422, V462, V551, V651, X462UNV, X463UN,  X551UN (w/ SB-02AM Adaptor)
  • X401S, X461S, X462S, X551S, X552S, V322, V323, V423, V463, V552, V652, V801 (w/o SB-02AM Adaptor)
• Power Consumption: 60W
• Certifications: CE, FCC Section 15
• Dimensions (WxDxH): 7.1 x 4.6 x 1.2 inch / 180.0 x 118.0 x 30.0 mm
• Weight: 2.5 lbs / 1.2 kg
