Condition: New Open Box

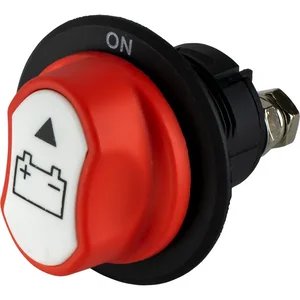

This compact battery switch features a removable knob for enhanced security. Simply twist the cap to the OUT position to remove. Its small footprint makes it perfect for tight spaces. This version is rated for 100A continuous and 150A cranking amps. Quick installation is achieved by drilling a 1-1/8" hole, inserting the socket body, tightening the locking nut, and connecting the wires.
The Sea-Dog Compact Battery Switch (part number 422732-1) is designed for IT environments requiring reliable power isolation in space-constrained applications. This unit provides On, Off, and Out switch positions, enabling complete power disconnection and a removable knob for security when in the 'Out' position. Constructed from machined brass and injection-molded nylon, it offers durability for continuous operation. With a 32V voltage rating and 100A continuous current rating (150A cranking), it is suitable for managing power to various IT hardware components or systems where a compact, secure battery disconnect is necessary. Its small footprint and 1-1/8" switch face width facilitate installation in tight enclosures or panels, addressing common challenges in rack or cabinet power management by providing a straightforward method for power control and maintenance.
This battery switch features three distinct positions: On, Off, and Out. The 'Out' position allows for the removal of the knob, enhancing security.
The switch is rated for 100A continuous current. It also supports 150A cranking amps for initial power demands.
The switch is constructed from durable machined brass and injection-molded nylon, designed for reliability in various operational conditions.
Quick installation is achieved by drilling a 1-1/8" hole. The socket body is then inserted, and the locking nut is tightened.
422732-1 - Seadog Sea-Dog Compact Battery Switch with Removable Key - 32V 100A
