Product Overview
An impact printer engineered for reliability and dedicated forms printing. Its short, straight feed path and optical sensors provide enhanced paper handling with accurate, precise output. Utilizes a durable rack-and-pinion drive system for extended print quality over belt or cable systems. Eliminates form waste by accurately positioning continuous forms for a clean tear at the perforation.
Technical Specifications
ML321T TURBO DOTPR 435CPS 9PIN WCAR 230V

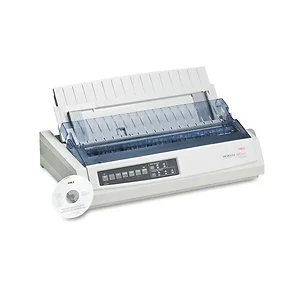

The Okidata Microline 321 Turbo is the perfect printer for a range of assignments, from point-of-sale to automation to utilities. Whether you are printing in super speed draft (435 cps) mode or near-letter quality (75 cps) mode, this 9-pin dot matrix printer is an excellent media handler. The ML321 Turbo can print virtually any sheet-fed or continuous form without waste or wait. Its pinfeed platen effortlessly moves card stock, labels and 6-part forms. The printer can be equipped with cut sheet feeder.
Product Description OKI Microline 321 Turbo - printer - B/W - dot-matrix
Printer Type Personal printer - dot-matrix - 9 pin - monochrome
Form Factor Desktop
Dimensions (WxDxH) 21.7 in x 14 in x 4.5 in
Weight 20.9 lbs
Localization Europe
Max Media Size (Custom) 16.5 in
Print Speed Up to 435 char/sec - max speed ¦ Up to 390 char/sec - normal ¦ Up to 300 char/sec - best ¦ Up to 75 char/sec - near letter
Max Resolution ( B&W ) 240 dpi x 216 dpi
Interface Parallel
RAM Installed ( Max ) 28 KB ( 64 KB )
Language Simulation EPSON ESC/P
Media Type Labels, plain paper, continuous forms
Monthly Duty Cycle 13000 pages
Power AC 230 V
System Requirements Microsoft Windows 3.x/95/98
General
Printer Type Personal printer - dot-matrix - 9 pin - monochrome
Form Factor Desktop
Width 21.7 in
Depth 14 in
Height 4.5 in
Weight 20.9 lbs
Enclosure Color White
Localization Europe
Printer
Print Speed Up to 435 char/sec - max speed Up to 390 char/sec - normal Up to 300 char/sec - best Up to 75 char/sec - near letter
Connectivity Technology Wired
Interface Parallel
Max Resolution ( B&W ) 240 dpi x 216 dpi
PostScript Support Not available
Language Simulation EPSON ESC/P
Fonts Included\ x scalable 8 x barcode
RAM
RAM Installed ( Max ) 28 KB / 64 KB (max)
Media Handling
Media Path Type Curved
Media Type Labels, plain paper, continuous forms
Max Media Size (Custom) 16.5 in
Media Feeder(s) Autoload
Max Sheets in Multi-Part Form 6
Duty Cycle
Monthly Duty Cycle 13000 pages
Cartridge / Printhead Duty Cycle 200 million characters
Cartridge / Printhead Included Qty 1
Expansion / Connectivity
Connections 1 x parallel - IEEE 1284 (EPP/ECP) - 36 pin Centronics
Miscellaneous
Compliant Standards Plug and Play
Power
Power Device Power supply - integrated
Voltage Required AC 230 V ± 10%
Frequency Required 50 Hz
Software / System Requirements
Software Included Drivers
