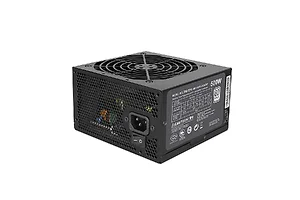

NWAIP-199998 - Cooler Master CoolerMaster Power MPX-5001-ACAAW-US MasterWatt Lite 500W Full Range ATX 12V Active PFC SAT

Product Name
MasterWatt Lite 500W Full Range Type
Intel Form Factor ATX 12V V2.31 Input Voltage
100-240Vac Input Current
4-8A Input Frequency
50-60Hz PFC
Active PFC (>0.9 typical) Power Good Signal
100-500ms Hold Up Time
>10ms at 100% full load Efficiency
80% Typically Load MTBF
>100,000 hours Fan Type
120mm HDB fan Noise level
20% Load : 19.9 dBA
50% Load : 21.9 dBA
100% Load : 33.2 dBA Regulatory
TUV, CE, BSMI, FCC, cTUV-Rhus, KC, CCC, EAC, RCMC Protections
OVP/UVP/OPP/OTP/OCP/SCP Certification
80 PLUS Standard ErP 2013 Complaint
Yes Connectors
MB 20+4 Pin : 1
CPU 12V 4+4 Pin : 1
PCI-e 6+2 Pin : 2
SATA : 6
4 Pin Peripheral: 3
Floppy : 1 Item Dimension (L inchxW inchxH inch)
6 x 6 x 4

Weight
4.00 lb

Warranty Information
3 Years
