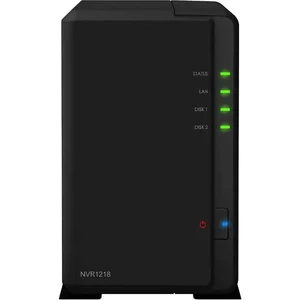

NVR1218 - Synology Network Video Recorder NVR1218 2 bay 12 channel Network Video Recorder Brown Box

Hardware Specifications
CPU
CPU Model:Embedded NVR SoC
CPU Architecture:32-bit
CPU Frequency:Dual Core 1.0 GHz
Memory
System Memory:1 GB DDR3
Storage
Drive Bays:2
Maximum Drive Bays with Expansion Unit:7
Compatible Drive Type :3.5" SATA HDD
Maximum Internal Raw Capacity:20 TB (10 TB drive x 2) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units:70 TB (10 TB drive x 7) (Capacity may vary by RAID types)
Maximum Single Volume Size:16 TB
External Ports
USB 2.0 Port:2
USB 3.0 Port:1
eSATA Port:1
COM Port:1
Video Outputs
Video Output:HDMI X 1
Supported Video Resolution:1080p 60Hz
Audio Input:3.5 mm Stereo Audio Jack x 1
Audio Output:3.5 mm Stereo Audio Jack x 1
IP Camera Support
Maximum Channel Number:12 (including 4 Free License)
Total FPS (H.264):360 FPS at 720p (1280x720), 12 Channels
100 FPS at 1080p (19201080), 10 Channels
60 FPS at 3M (2048x1536), 6 Channels
40 FPS at 5M (2591x1944), 4 Channels
30 FPS at 4K (3840x2160), 3 Channels
Total FPS (MJPEG):120 FPS at 720p (1280x720), 12 Channels
80 FPS at 1080p (19201080), 8 Channels
60 FPS at 3M (2048x1536), 6 Channel
40 FPS at 5M (2591x1944), 4 Channel
Video Codec:MJPEG
MPEG-4
H.264
H.265 (output via local display is not supported)
MxPEG (output via local display is not supported)
Audio Codec:PCM
ADPCM
G711
G726
AMR
AAC
Notes:In our test environment, live view streams are delivered via Local Display video live-viewing and recording share the same video stream from the camera. Surveillance Station throughput is tested with an Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera.
Others
RJ-45 1GbE LAN Port:1
Wake on LAN/WAN:Yes
System Fan:80 mm x 80 mm x 1 pcs
Fan Speed Mode:Cool Mode
Quiet Mode
Power Recovery:Yes
Noise Level:19 dB(A)
Scheduled Power On/Off:Yes
Power Supply Unit / Adapter:60W
AC Input Power Voltage:100V to 240V AC
Power Frequency:50/60 Hz, Single Phase
Power Consumption:13.64 W (Access)
4.32 W (HDD Hibernation)
British Thermal Unit:46.57 BTU/hr (Access)
14.75 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature:5^oC to 45^oC (40^oF to 113^oF)
Adapter Operating Temperature:0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature:-20^oC to 60^oC (-5^oF to 140^oF)
Relative Humidity:5% to 95% RH
Certification:FCC Class B
CE Class B
BSMI Class B
Warranty:3 Year Hardware Warranty, Extendable to 5 Year Coverage - EW201
Notes:Support for Wake on WAN needs switch and routers which recognize Magic Packet.
Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear Background noise: 16.49-17.51 dB(A) Temperature: 24.25-25.75C Humidity: 58.2-61.8%
DSM Specifications
File System
Internal Drives:EXT4
External Drives:EXT4
EXT3
FAT
NTFS
HFS+ (Read Only, with max. volume size 2TB)
Storage Management
Maximum Internal Volume Number:256
Supported RAID Type:Synology Hybrid RAID
Basic
JBOD
RAID 0
RAID 1
RAID 5 (with Expansion Unit)
RAID 6 (with Expansion Unit)
RAID Migration:Basic to RAID 1
Basic to RAID 5 (with Expansion Unit)
RAID 1 to RAID 5 (with Expansion Unit)
RAID 5 to RAID 6 (with Expansion Unit)
Volume Expansion with Larger HDDs:Synology Hybrid RAID
RAID 1
RAID 5 (with Expansion Unit)
RAID 6 (with Expansion Unit)
Volume Expansion by Adding a HDD:Synology Hybrid RAID
RAID 5 (with Expansion Unit)
JBOD (with Expansion Unit)
Global Hot Spare Supported RAID Type:Synology Hybrid RAID (with Expansion Unit)
RAID 1 (with Expansion Unit)
RAID 5 (with Expansion Unit)
System Management
Maximum Local User Accounts:1024
Maximum Local Groups:256
Maximum Shared Folder:256
Windows Access Control List (ACL) Integration:Yes
Log Center:Yes
Syslog Events per Second:100
Add-on Packages
VPN Server:Yes
Maximum Connections:5
Environment Packaging
Environment:RoHS Compliant
Packaging Content:Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1
HDD bracket X 1
USB installation dongle X 1
Optional Accessories:Surveillance Device License Pack
Expansion Unit: DX517 X 1
Item Dimension (L inchxW inchxH inch)
11 x 10 x 5 Weight
4.41 lb Warranty Information
3 Years
