SKU: GM5YFCT3S7 |  Mfg. Part: NUSCAN 5200TU  | UPC: 783750008594  |
 4 Reviews  |     Share

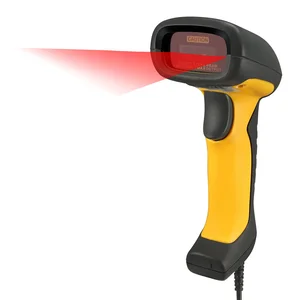

NUSCAN 5200TU - Adesso Scanner NUSCAN 5200TU 1D and 2D USB Barcode Scanner Retail

Special Order
Ships in 1-2 weeks
Condition: New

$168.06  $226.88
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The Adesso NuScan 5200TU is compatible with a wide range of 1D and 2D barcode symbologies. With CMOS imager the NuScan 5200TU is able to scan major 2D barcodes such as PDF 417, QR Codes, Data Matrix, and micro QR Code. As your daily peripheral companion, your peripheral must be able to provide you with good hygiene and cleanness. Built with waterproof and antimicrobial substances, the NuScan 5200TU can be cleaned periodically. Its 7 meter drop protection also adds to its ruggedness. With all these great features, the NuScan 5200TU is truly your ultimate barcode scanner.

Expert Overview

The Adesso NuScan 5200TU is a 1D and 2D USB barcode scanner designed for business and IT environments requiring versatile data capture. This device utilizes a 640 x 480 CMOS imager, enabling it to read common 2D barcodes such as PDF 417, QR Codes, Data Matrix, and micro QR Code, in addition to a wide range of 1D symbologies. Its operational depth of field extends up to 12 inches for EAN-13 barcodes, with a motion tolerance of 24 inches per second. The scanner is built for durability, featuring resistance to 7-meter freefall drops and constructed with waterproof and antimicrobial substances to facilitate regular cleaning. The NUSCAN 5200TU connects via a 6-foot USB cable and operates within a temperature range of -20oC to 50oC. This scanner is suitable for retail, inventory management, or other applications where reliable and robust barcode scanning is necessary.

Technical Specifications

Imager:
640 x 480 CMOS Light Source:
650 +/- 10 nm visible red LED and White LED Depth of Field:
0-12 inches (at20mil EAN-13, PC 100%) Scan Angle:
Roll: +/-50o, Pitch: +/-45o, Yaw: +/-360o Motion Tolerance:
24 inches per second (IPS) Minimum Bar Width (1D):
5 mil/0.127 mm at PCS 90%, Code 39. Minimum Bar Width (2D):
10 mil/0.254 mm at PCS 80%, Data Matrix. Print Contrast:
PCS 30% code 39 at 5mil Indicators (LED):
Green LED Alert Operation:
Programmable Beeper Tone Input Voltage:
5VDC +/- 5% Operating Current:
220 +/- 5% mA Cable:
6 ft (1.83m) Operating Temperature:
-20oC to 50oC Storage Temperature:
-40oC to 70oC Humidity:
5% to 95% (non-condensing) Light Levels:
Max 100,000 lux Shock:
Withstanding 7m freefall drops Supported Symbologies
UPC-A/E
EAN13/8
Code 128
GS1-128
Code 39(Plain and Full ASCII)
Code 93
Code 11
Code 25(ITF/Industrial/Matrix/IATA Standard)
Codabar,
MSI/MSI Plessey
GS1 DataBar Item Dimension (L inchxW inchxH inch)
9 x 5 x 4

Weight
2.00 lb

Warranty Information
1 year

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • Adesso
  • NUSCAN 5200TU
  • B078TCPKMM
  • 783750008594
  • New
  • 1 lbs
  • 3 X 3 X 8
  • Today - Aug 01, 2026
  • Jan 03, 2020
  • CN
Product Identifiers: Brand: Adesso • Part #: NUSCAN 5200TU • UPC: 783750008594 • ASIN: B078TCPKMM • Category: Barcode Scanners

Frequently Asked Questions

What types of barcodes can the Adesso NuScan 5200TU read?

The Adesso NuScan 5200TU can read a wide range of 1D and 2D barcode symbologies, including PDF 417, QR Codes, Data Matrix, micro QR Code, UPC-A/E, EAN13/8, Code 128, GS1-128, Code 39, Code 93, Code 11, Code 25, Codabar, MSI/MSI Plessey, and GS1 DataBar.

What are the physical durability features of this scanner?

The NuScan 5200TU is designed for rugged use, capable of withstanding 7-meter freefall drops. It is also built with waterproof and antimicrobial substances, allowing for periodic cleaning to maintain hygiene.

What is the minimum bar width the scanner can detect for 1D and 2D barcodes?

For 1D barcodes, the scanner can detect a minimum bar width of 5 mil/0.127 mm (at PCS 90%, Code 39). For 2D barcodes, it can detect a minimum bar width of 10 mil/0.254 mm (at PCS 80%, Data Matrix).

What is included with the Adesso NuScan 5200TU?

The product includes the Adesso NuScan 5200TU barcode scanner with an integrated 6 ft (1.83m) USB cable. It also comes with a 1-year warranty.
