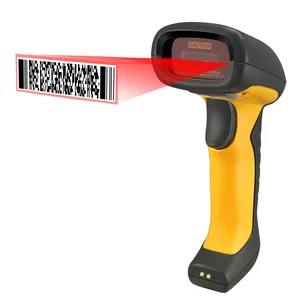

The Adesso NuScan 5200TR is compatible with a wide range of 1D and 2D barcode symbologies and is the 2.4GHz wireless version of the NuScan 5200TU. With the built in USB receiver inside its cradle, the NuScan 5200TR is completely plug and play. NuScan 5200TR is compatible with major 2D barcodes such as PDF 417, QR Codes, Data Matrix, and micro QR Code. Built with waterproof and antimicrobial substances, the NuScan 5200TR can be cleaned periodically to provide good hygiene. Its 7 meter drop protection also adds to its ruggedness. With all these great features, the NuScan 5200TR is truly your ultimate barcode scanner.
Technical Specifications
Imager: 640 x 480 CMOS Light Source: 650 +/- 10 nm visible red LED and White LED Depth of Field: 0-12 inches ( at 20mil EAN-13, PC 100%) Scan Angle: Roll: +/-50o, Pitch: +/-45o, Yaw: +/-360o Motion Tolerance: 24 inches per second (IPS) Minimum Bar Width (1D): 5 mil/0.127 mm at PCS 90%, Code 39. Minimum Bar Width (2D): 10 mil/0.254 mm at PCS 80%, Data Matrix. Print Contrast: PCS 30% code 39 at 5mil Indicators (LED): Green LED Alert Operation: Programmable Beeper Tone Input Voltage: 5VDC +/- 5% Operating Current: 220 +/- 5% mA Cable: 6 ft (1.83m) Operating Temperature: -20oC to 50oC Storage Temperature: -40oC to 70oC Humidity: 5% to 95% (non-condensing) Light Levels: Max 100,000 lux Shock: Withstanding 7m freefall drops Supported Symbologies UPC-A/E, EAN13/8 Code 128 GS1-128 Code 39(PlainandFull ASCII) Code 93 Code 11 Code 25(ITF/Industrial/Matrix/IATA Standard) Codabar, MSI/MSI Plessey GS1 DataBar Item Dimension (L inchxW inchxH inch) 11 x 8 x 5
