Product Overview
The NuScan 4100 is a industrial, waterproof, antimicrobial, highly portable barcode scanner designed to simplify your job and increase productivity.
Technical Specifications
Operational
Light Source: 630 nm visible red LED
Microprocessor: 32 bit
Depth of Field: 0 to 12 inches (UPC/EAN 100%, PCS90%)
Scan Angle: 42 Degrees
Scan Rate: 200 scans per second
Minimum Bar Width: 0.1 mm Code 39, PCS90%)
Print Contrast: Min. 25% at UPC/EAN 100%
Indicators (LED): Blue LED successful scan / Red scanning beam
Alert Operation: Programmable tone beep time
Communication: Bluetooth 3.0 Compliant
Scanning Rage (Open Area): 10 m / 30ft Electrical/Power Specifications
Input Voltage: 3.3 to 4.2V DC +/-0.5V
Battery Type: Polymer Rechargeable Battery
Charge Time: 2 to 2.5 hours
Scans Per Charge: 25,000 scans when fully charged Regulatory
EMC : CE FCC DOC compliance, VCCI, BSMI
Operating Current: 140 mA10mA Physical
Cable: 6ft (2m) Environmental
Operating Temperature: 0 C to 50 C (32 F to 122 F)
Storage Temperature: -40 C to 70 C (-40 F to 70 F)
Humidity: 5% to 95% RH (non-condensing)
Shock: Designed to withstand an impact force of 2000g drops of up to 20ft Supported Symbologies
UPC Version A E
EAN-8, EAN-13
JAN-8, JAN-13
Code 39
Code 32
Codabar
Interleave 2 of 5 (ITF 2/5)
Code 128 EAN-128
Code 93
MSI/Plessey
Industrial 2 of 5 System Requirements
Windows 7 and Above
Mac OS, Android and OS
USB Port for Charging Cradle Package Contents

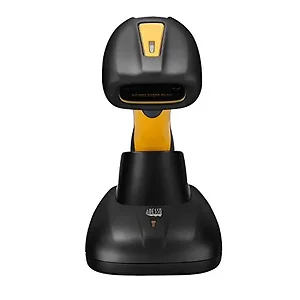

Adesso NuScan 4100B Barcode Scanner with Charging Cradle / Holder
Quick Start Guide Item Dimension (L"xW"xH")
10 x 8 x 5
Weight
3.00 lb
Warranty Information
NA
