Technical Specifications
Hardware
1.Intel Core i3 Dual-Core 3.3GHz CPU
2.8GB
3.12 x 3.5 SATAII/SATAIII hard disk drives
4.Host Connectivity: 2 x 1GbE
5.Optional host board: 4 x 1GbE, 2 x 10GbE(SFP+ or RJ45), 2 x 16Gb FC
6.6 x USB ports (rear)

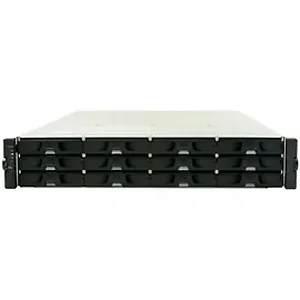

7.Dimensions: 2U 19 Rackmount, 88.3(H) x 443.2(W) x 651.4(D) mm
8.Sound Level:
1.Access Mode: 45.0 dB
9.Weight: 13.10kg / 28.88lb (without HDD) 21.76kg / 47.97lb (with HDD)
10.Two (2) redundant 550W power supplies
11.AC input power voltage: 100-240V / 10 - 5A with PFC (auto-switching)
12.Power frequency: 47-63 Hz
13.System fan: 2 x SmartFan (8cm, 12V DC) Software
Protocols
CIFS/SMB, AFP, NFS, FTP, iSCSI, SNMP, SMTP, NDMP, NTP, ICAP, FTPS, Secure FTP
Operating System Support
Windows XP, Vista (32/64-bit), Windows 7 (32/64- bit), Windows 8, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Apple Mac OS X, Linux, Red Hat, SuSE Server Virtualization
1.VMware vSphere
2.Citrix XenServer
3.Windows Server 2008 Hyper-V
File System
1.Internal: ZFS
2.External: FAT32, NTFS Networking
1.IPv6 support
2.Fixed or dynamic IP address
3.Dual Gigabit Ethernet with Jumbo Frame
4.Port trunking/NIC teaming/Link aggregation (IEEE 802.3ad)
5.DHCP Client
6.MPIO, MC/S Support Security
1.HTTPS connection
2.Encrypted remote replication (rsync over 128-bit SSH)
3.Encrypted pool mirror (IP Sec)
4.CHAP authentication for iSCSI volumes
5.AES256-bit Encryption RAID and Volume Management
1.RAID0/1/5/5 + Hot spare/6/6+ Hot spare/10
2.Online and automatic RAID capacity expansion
3.Deduplication:
I.Inline
II.Block-level
4.Compression
5.Thin provisioning (iSCSI volumes only)
6.SPC-3 persistent reservation (iSCSI volumes only)
7.ICAP-based anti-virus support Power Management
1.Wake on LAN
2.Network UPS with SNMP management
3.Schedule Power On/Of
4.HDD Sleep-Mode Access Right Management
1.User account management
2.Group management
3.Folder management
I.Folder and subfolder access control
4.Folder quota
5.Comprehensive access control action items
I.All Controls, Read, Read and Run, Write, Modify, List
6.Support Windows Active Directory Authentication
I.Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer
7.LDAP on Linux System Management
1.Web-based GUI
2.HTTP/HTTPS connections
3.Email alerts
4.SNMP traps
5.System status monitoring
6.Exportable event logs
7.System settings backup and restore
8.Software live update
9.Disk roaming
10.Time synchronization with a NTP server
11.Disk Roaming
12.HDD S.M.A.R.T. Data Protection
1.OpenSolaris ZFS end-to-end data integrity
I.Detects and automatically heals silent data corruption
2.Snapshot
I.No number limitation
II.For both shared folders and iSCSI volumes
III.Scheduling at intervals as short as 10 minutes
IV.Automatic snapshot copy pruning based on user configured policy 3.Remote Replication
I.Rsync with 128-bit SSH encryption
4.Pool mirror
I.Remote data mirroring
II.Real-time or scheduling
III.IPsec encryption
5.ICAP-based anti-virus support
6.WORM(Write Once, Read Many) Browser Support
1.Internet Explorer
2.Firefox
3.Google Chrome
File Server
1.Protocols: CIFS/SMB, AFP, NFS, FTP, HTTP/HTTPS
2.Client operating system: Windows, Mac OS, Linux
3.File/folder management by web browser
FTP Server
1.Max. concurrent connection control
2.Max. failed log-in attempt control Backup Server
1.Apple Time Machine support
2.Windows Backup and Recovery support
3.Bundled free licenses for FarStone TotalRecovery Pro 7
1.EonNAS 1510: Incl. 12 licenses.
2.EonNAS 1510-1: Incl. 12 licenses.
3.EonNAS 1510-2: Incl. 12 licenses.
4.Backup to external storage devices via USB connections
5.Remote replication
1.Rsync with 128-bit SSH encryption
6.3rd-party backup software support
1.Acronis Backup and Recovery/ True Image Home
2.Symantec Backup Exec 2012
3.EMC Retrospect Backup and Recovery
4.CA ARCserve Backup Item Dimension (L"xW"xH"):
36 x 23 x 16
Weight:
79.81 lb
Warranty Information:
3 years
