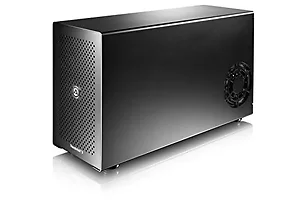

NODE-T3IA-AKTU - Akitio Accessory NODE-T3IA-AKTU NODE Thunderbolt 3 external PCI Express Box Brown Box

Certifications
CE
FCC
VCCI
Thunderbolt technology Case material
SECC sheet metal Application
1 x PCIe card (see compatibility chart)
Supports full-length, full-height and double-width cards
PCIe (x16) slot provides a maximum of 75W but additional power can be supplied to the PCIe card by connecting a pair of 8-pin (6+2 pin) connectors RAID mode
Not applicable Interface/Ports
1 x Thunderbolt 3 (USB-C) port
1 x internal PCIe (x16) slot with 4 lane PCI Express 3.0 interface Data transfer
Thunderbolt 3 up to 40 Gbps System requirements (PC)
Windows 10
Computer with Thunderbolt 3 port
Computer must support external GPUs (see compatibility chart) System requirements (Mac)
Not supported System environment
Operating Temperature: 5^oC to 35^oC
Storage Temperature: -20^oC to 60^oC
Relative Humidity: 5% to 95% (non-condensing) Power supply
Internal power supply (UL, cUL, CE, FCC, BSMI, TUV approved)
Input: AC 100-240V, 50Hz-60Hz
Output: DC +12V/33A Fan noise level
29.6 dB(A) Package contents
AKiTiO Node with built-in 400W PSU
Thunderbolt 3 USB-C cable
Setup guide Remarks
The computer must support external GPUs.
Not all Thunderbolt 3 computers support external GPUs. If in doubt, please contact the manufacturer of your computer.
To prevent damage, always uninstall graphics cards when transporting the device.
The device has to be connected directly to the computer and it does not support a daisy chain.
This device provides 15W over Thunderbolt but only for laptops that accept a charge from a 5V/3A power source see FAQ
The monitor, VR headset, Intel NUC and graphics card are for reference only.
This product is not supported on macOS
This product is not supported on Boot Camp Item Dimension (L inchxW inchxH inch)
7 x 14 x 3

Weight
22.00 lb

Warranty Information
2 Years
