Product Overview

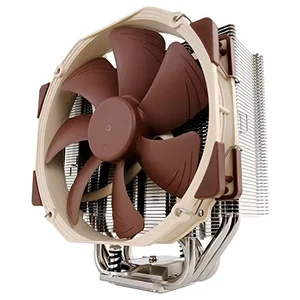

Noctua NH-U14SBrand NewProduct # NH-U14S NH-U14S Features: Product Series: NH-U Number of Fans: 1 Fan Bearing Type: SSO2 Bearing Fan Speed (rpm): 1 x 1500 rpm Air Flow: 1 x 140.2 m?/h Compatible Processor Socket: Socket R LGA-2011 Compatible Processor Socket: Socket T LGA-775 Compatible Processor Socket: Socket H LGA-1156 Compatible Processor Socket: Socket H2 LGA-1155 Compatible Processor Socket: Socket H3 LGA-1150 Compatible Processor Socket: Socket AM2 PGA-940 Compatible Processor Socket: Socket AM2+ PGA-940 Compatible Processor Socket: Socket AM3 PGA-941 Compatible Processor Socket: Socket AM3+ Compatible Processor Socket: Socket FM1 Compatible Processor Socket: Socket FM2 Compatible Processor Socket: Socket B LGA-1366 Material: Copper Base Material: Copper Heat Pipe Material: Aluminum Fin Fan Diameter: 1 x 140 mm Heatsink Height: 6.50" Heatsink Width: 5.91" Heatsink Depth: 2.05" Application/Usage: Processor
Technical Specifications
Socket Compatibility
Intel LGA2011 (Square ILM), LGA1156, LGA1155, LGA1150 AMD AM2, AM2+, AM3, AM3+, FM1, FM2 (backplate required) Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints nickel plating Fan Compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 Scope of Delivery
NF-A15 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2 Mounting Kit
Anti-vibration pads and fan-clips for second NF-A15 (optional)
Noctua Metal Case-Badge Fan Specifications:
Model
Noctua NF-A15 PWM Bearing
SSO2 Maximum Rotational Speed (+/-10%)
1500 RPM Maximum Rotational Speed with L.N.A (+/- 10%)
1200 RPM Minimum Rotational Speed (PWM)
300 RPM Maximum Airflow
140.2 m/h Maximum Airflow with L.N.A
115.5 m/h Maximum Acoustical Noise
24.6 dB(A) Maximum Acoustical Noise with L.N.A
19.2 dB/(A) Input Power
1.56W Voltage Range
12V MTBF
>150,000 Hours Item Dimension (L"xW"xH")
6.5 x 5.9 x 3.1
Weight
2.10 lb
Warranty Information
6 Years
