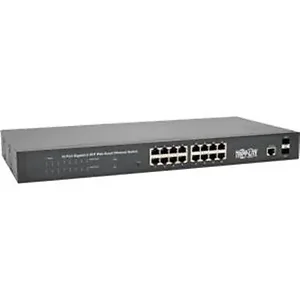

Eaton Tripplite NGS16C2 Tripp-Lite Switch NGS16C2 Web-Smart 16 Port 10/100/1000Mbps 2 Port Dedicated Gigabit SFP Retail

INPUT
- Electrical Consumption
80 watts max.
- Input Plug Features
Detachable NEMA 5-15P to C13 input plug can be replaced with a wide variety of 100 to 240V international cordsets that terminate to a C13 connector on the output side
- Input Cord Length (m)
1.52
- Voltage Compatibility (VAC)
100, 110, 120, 127, 200, 208/240
- Input Phase
Single-Phase
- Input Plug Type
NEMA 5-15P
USER INTERFACE, ALERTS and CONTROLS
- Switches
1 included switch enables factory reset
- LED Indicators
Power LED (Green for Power On), One LED per RJ-45 port (Amber indicates 10/100Mbps link, Green indicates 1000Mbps link, LEDs flash to indicate port activity), Two LEDs indicate SFP connection (Green)
PHYSICAL
- Primary Form Factor
Desktop, Rackmount
- Minimum Required Rack Depth (cm)
20.50
- Color
Black
ENVIRONMENTAL
- Storage Temperature Range
-40 to 158 F (-40 to 70 C)
- Relative Humidity
10 to 90% (Non-condensing)
- Operating Elevation (ft.)
10,000
- Operating Temperature
32 to 104 F (0 to 40 C)
- Operating Elevation (m)
3,000
CONNECTIONS
- Ports
18
- Network Switch Ports
(16) 10/100/1000 (RJ45), (2) Dedicated SFP
CERTIFICATIONS
- Certifications
Compliant standards: IEEE 802.3ab (1000BASE-T GIGABIT ETHERNET), IEEE 802.3i (10BASE-T ETHERNET), IEEE 802.3u (100BASE-T ETHERNET), IEEE 802.3x (FULL DUPLEX/FLOW CONTROL), IEEE 802.3 (NWAY AUTO-NEGOTIATION), 802.1q(TAGGED VLAN), 802.1d(STP), 802.1w (RSTP), 802.1p (QUALITY OF SERVICE)
- Approvals
Tested to: UL 60950-1:2007 (2nd Ed), CAN/CSA C22.2 NO. 60950-1-07 2nd Edition
Item Dimension (L inchxW inchxH inch)
12 x 22 x 4
Weight
8.00lb
Warranty Information
5-year limited warranty
