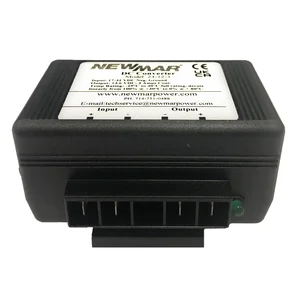

Newmar 24-12-3 DC Converter - 12V Power Supply

This DC converter efficiently converts a wide input voltage range of 17-32 VDC to a stable 12 VDC negative ground output, making it ideal for powering communication and navigation equipment on negative ground systems.

Key Features:

• Excellent voltage regulation maintaining output within 1% under varying line and load conditions.
• Large heat sink fins effectively dissipate heat, ensuring cool operation and longevity of components.
• Durable polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum casing for environment resilience.

Safety and Protection:

• Incorporates numerous protection features including current limiting, automatic thermal shutdown, short circuit proof, reverse polarity, and overvoltage protection.
• Carries the CE mark for compliance with safety standards.

Specifications:

• Input Voltage: 17-32 VDC
• Output Voltage: 13.6 VDC (internally adjustable 12.6 - 14.5 VDC)
• Output Amps (Intermittent): 3A
• Output Amps (Continuous): 3A
• Dimensions: 3.5 x 3.5 x 1.75 inches
• Weight: 1 lb.
• Ripple: 150 mV P-P maximum
• Efficiency: 85% typical

Operating Conditions:

• Temperature Range: 0-50 degrees C with derating above 40 degrees C.
• Can provide full output from -25 degrees to +30 degrees C, with gradual derating to 45% at +50 degrees C.

Mechanical Features:

• Constructed with a powder-coated aluminum heat sink case and heavy-duty mounting flange.
• Includes a front panel terminal block for easy connections.
• Conformal coated PC board for enhanced durability.

Note: This product cannot be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.

The Newmar 24-12-3 Heavy-Duty Voltage Converter is designed to provide a stable 12 VDC negative ground output from a 17-32 VDC input. This unit is suitable for IT and business applications requiring reliable power conversion for communication and navigation equipment operating on negative ground systems. It maintains output voltage within 1% under varying line and load conditions, ensuring consistent power delivery. Key features include a large heat sink for thermal management, a polyurethane conformal coating on PC boards, and a corrosion-resistant anodized aluminum casing for durability in diverse environments. Safety is addressed through current limiting, automatic thermal shutdown, short circuit proofing, reverse polarity, and overvoltage protection. The converter is CE marked, indicating compliance with relevant safety standards. Its robust construction and protective features make it appropriate for environments where stable power conversion and component longevity are critical.
