Newmar 7 Amp DC-DC Converter for 12V to 24V Applications

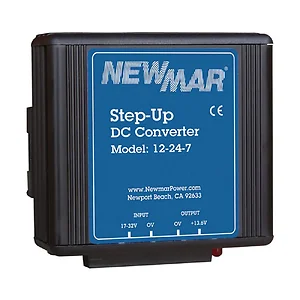

The Newmar 12-24-7 Step Up DC-DC Converter is designed to provide 24 volts from a 12-volt system, making it ideal for dual voltage applications onboard marine vessels. This converter eliminates the need for a dedicated 24-volt battery and charging system.

Standard, Non-Isolated Series

Key features include:

• Designed for negative ground systems
• Input range: 10 - 15 VDC
• 7 Amp continuous output
• Includes current limiting and voltage spike suppression for enhanced protection
• Automatic thermal shutdown and recovery

Specifications:

• Input Voltage: 10 - 15V DC
• Output Voltage: 27.2 VDC +/- 5%
• Ripple: < 100mV P-P
• Regulation: +/- 5% Line/Load
• Duty Cycle: Continuous operation for up to 24 hours
• Operating Temperature: -25°C to +80°C

Mechanical:

• Efficiency: Approximately 93%
• Construction: Anodized aluminum and glass filled polycarbonate
• IP53 rated for dust and water resistance
• Convenient front panel terminal block
• Output indicator: Green LED for status
