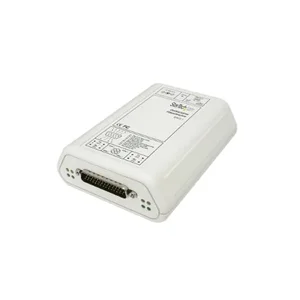

StarTech NETRS232Brand NewIncludes 2 Year WarrantyProduct # NETRS232Connect, configure and manage a remote RS-232 serial device, over an IP network. The NETRS232 Serial Device Server lets you remotely access and manage an RS232 serial device over a local or wide area network (LAN/WAN), giving you a simple and cost-effective serial-over-IP control solution. For installation flexibility across a variety of locations or environments, you can power the serial device server using either a 12V DC power adapter (included) or through the integrated 10~30V DC terminal block. Plus, the device server is DIN rail mountable for out-of-the-way installations. To help ensure seamless performance and prevent possible damage to the server and connected devices, the serial device server offers 15KV ESD (Electrostatic Discharge) protection. This highly-customizable device server is easy to configure to suit your application, with versatile browser-based or Virtual Com port software configuration and integrates support for VCOM, TCP Server/Client, UDP, HTTP, DHCP, ICMP(PING), Static IP, and ARP protocols, while supporting baud rates up to 230.4 Kbps and is compliant with IEEE 802.3, IEEE 802.3u standards. Backed by a 2-year StarTech.com warranty and free lifetime technical support. NETRS232 Features: Media Type Supported: Twisted Pair Wireless LAN: No Ethernet Technology: Fast Ethernet Network Standard: 10/100Base-TX Network (RJ-45): Yes USB: No Serial Port: Yes Parallel Port: No Centronics Port: No PoE (RJ-45) Port: No Number of Network (RJ-45) Ports: 1 Number of Serial Ports: 1 Form Factor: Rail-mountable Green Compliant: Yes Green Compliance Certificate/Authority: RoHS
Technical Specifications
Hardware Ports:1 Interface:Serial Industry Standards:IEEE 802.3, IEEE 802.3u Connector(s) Connector Type(s): 1 - DB-9 (9 pin D-Sub) Male 1 - RJ-45 Female 1 - Terminal Block (2 Wire) Performance Serial Protocol:RS-232 Max Baud Rate:230.4 Kbps Data Bits:5, 6, 7, 8 Flow Control:RTS/CTS, None Parity:None, Even, Odd, Space, Mark Stop Bits:1, 1.5, 2 Remote Management Ability:Yes Surge Protection:15KV ESD (Electrostatic Discharge) Protection Compatible Networks:10/100 Mbps Auto MDIX:Yes Supported Protocols:VCOM, TCP Server, TCP Client, UDP, HTTP,DHCP, ICMP(PING), Static IP, ARP Software OS Compatibility: Windows 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), 2000 Windows Server 2012, 2008 R2, 2003 (32/64)
Color Black
Enclosure Type Plastic Indicators LED Indicators: 1 - Power 1 - Tx 1 - Rx 1 - 10/100Mbps LAN 1 - Link/Activity Power Input Voltage:100 240 AC Input Current:480 mA Output Voltage:12 DC Output Current:1.2 A Center Tip Polarity:Positive Power Consumption:1.45W Max Included in Package 1 - Serial over IP Device Server 1 - DIN Rail Kit 1 - Terminal Block 1 - Universal Power Adapter (NA/UK/EU) 1 - Software CD 1 - Instruction Manual Item Dimension (L"xW"xH"): 6.69 x 6.10 x 3.15
