Technical Specifications
PROSAFE DUAL BAND WLS N AP
Up to 15x the speed and 10x the coverage of 802.11a, 802.11g networks Stylish and elegant design with easy mounting options Concurrent operation in 2.4 GHz and 5 GHz radio band for maximum wireless throughput Backward compatibility with 802.11a, 802.11g and♊.11b network devices Integrated Power over Ethernet (IEEE 802.3af PoE) lowers deployment costs Deploy wireless coverage over large areas with point-to-point and point-to-multipoint bridging via Wireless Distribution System (WDS) Security feature include WPA, WPA2, rogue AP detection and 802.1x with RADIUS support Easy mounting mechanism for quick wall or ceiling installation Internal antennas factory-optimized for maximum RF performance
*
MAIN SPECIFICATIONS

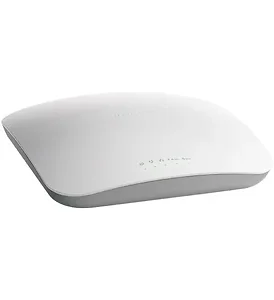

Product Description NETGEAR ProSafe Dual Band Wireless-N Access Point WNDAP360 - wireless access point
Device Type Wireless access point
Enclosure Type External
Dimensions (WxDxH) 10 in x 10 in x 2.2 in
Weight 1.9 lbs
Localization North America
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Remote Management Protocol SNMP 1, Telnet, SNMP 2c, SSH, CLI
Frequency Band 2.4 GHz, 5 GHz
Capacity Connection / user qty : 50
Features Auto-sensing per device, DHCP support, power over Ethernet (PoE), VLAN support, auto-uplink (auto MDI/MDI-X), repeating mode, MAC address filtering, VPN passthrough, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), RADIUS support, hidden SSID, wireless bridge mode, rogue access point detection
OS Required UNIX, Apple MacOS, Linux, Microsoft Windows 98/ME/2000/XP/Vista
Power Over Ethernet (PoE) Supported Yes
Manufacturer Warranty Limited lifetime warranty
General
Device Type Wireless access point
Width 10 in
Depth 10 in
Height 2.2 in
Weight 1.9 lbs
Localization North America
Processor / Memory / Storage
Hard Drive None.
Networking
Form Factor External
Connectivity Technology Wireless
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Remote Management Protocol SNMP 1, Telnet, SNMP 2c, SSH, CLI
Frequency Band 2.4 GHz, 5 GHz
Capacity Connection / user qty : 50
Status Indicators Power, LAN, wireless, link/activity
Features Auto-sensing per device, DHCP support, power over Ethernet (PoE), VLAN support, auto-uplink (auto MDI/MDI-X), repeating mode, MAC address filtering, VPN passthrough, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), RADIUS support, hidden SSID, wireless bridge mode, rogue access point detection
Encryption Algorithm 128-bit WEP, 64-bit WEP, 152-bit WEP, SSL, TLS, PEAP, TTLS, WPA, WPA2
Authentication Method Secure Shell (SSH), RADIUS, Extensible Authentication Protocol (EAP)
Compliant Standards IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11n
Antenna
Antenna Internal integrated
Antenna Qty 2
Gain Level 2 dBi
Expansion / Connectivity
Interfaces[ x network / power - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 2 x antenna - SMA 1 x management - RJ-45
Miscellaneous
Cables Included 1 x network cable
Mounting Kit Included
Power
Power Over Ethernet (PoE) Supported Yes
Power Device Power adapter - external
Software / System Requirements
Software Included Drivers & Utilities
OS Required UNIX, Apple MacOS, Linux, Microsoft Windows 98/ME/2000/XP/Vista
Manufacturer Warranty
Service & Support Limited lifetime warranty
Service & Support Details Limited warranty - lifetime
