Special Order
Ships in 1-2 weeks
Condition: New

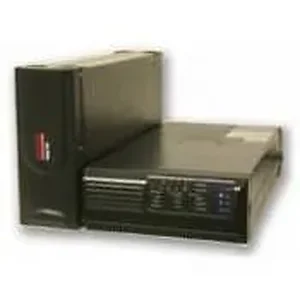

The Maruson NET-1500XRT is a line-interactive Uninterruptible Power Supply (UPS) system with a capacity of 1500VA and 1050W. It offers scalable external battery support and true sine wave output for connected equipment. The system includes comprehensive surge protection and communication interfaces.
| Specifications | Line-Interactive Design and True Sine Wave Output |
|---|---|
| Capacity | 1500VA / 1050W |
| Nominal Input Voltage | 110~120VAC |
| Voltage Range | 88~152VAC |
| Frequency | 50/60 Hz (Auto Sensing) |
| Input Connections | NEMA 5-15P |
| Output Power Capacity | 1500VA / 1050W |
| Nominal Output Voltage | 110/120VAC ± 10% |
| Output Frequency | 60Hz |
| Waveform Type | True Sine Wave |
| Output Connections | 5 x NEMA 5-15R (Battery Backup with Surge Protection) |
| Battery Type | Maintenance-free Sealed Lead-Acid |
| Battery Quantity | 4 pcs of 12V / 7Ah |
| Back Up Time | 5 Minutes at Full Load, 19 Minutes at Half Load |
| Recharge Time | 3 hours to 90% after complete discharge |
| Transfer Time | 2-4 ms (Typical) |
| Phone/Fax/Surge/Network Protection | RJ-11 / RJ-45 |
| AC Mode | Line LED Light |
| Backup Mode | Battery LED flashes every 4 seconds |
| Site Fault | Site Fault LED Light |
| UPS Fault | Fault LED Light |
| Overload | Overload LED Light |
| Low Battery | Battery LED flashes every second |
| Interface | RS-232 (Windows, Linux, Mac), USB (Windows) |
| Dimensions (WxDxH) | 8.54 x 15.75 x 3.4 in |
| Color | Black |
| Weight | 14.3 lbs |
