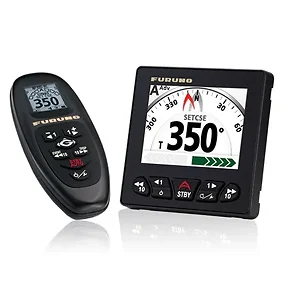

NAVPILOT 300/PG-M - Furuno NAVPILOT300 Autopilot With PG700 and PUMPOCT16-12

Furuno NAVPILOT300 Autopilot With PG700 and PUMPOCT16-12

he NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.

The NavPilot 300/PG-M includes a 1.6L pumpset for boats with multiple-cylinder steering systems, as well as the PG700 Fluxgate Compass Heading Sensor with magnetic field distortion correction, providing highly accurate and stable heading information.

The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!

The SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.

Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).

The optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot. The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.

FishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).

With Fantum Feedback, NAVpilot outboard/sterndrive installations no longer require use of a physical rudder feedback unit. NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control.

• NAVPILOT 300
• PG700 Fluxgate Magnetic Sensor
• PUMPOCT16-12
• AIR-335-792 NMEA2000 Micro Terminator, Female
• AIR-335-791 NMEA2000 Micro Terminator, Male
• AIR-052-531 NMEA2000 T-Connector

The Furuno NAVPILOT300 Autopilot system is designed for planing and semi-displacement outboard vessels ranging from 24 to 50 feet, accommodating one to four outboard engines. This system provides precise course control across a broad speed range, from slow trolling to over 60 knots. A key feature, Fantum Feedback, eliminates the need for a physical rudder feedback unit in outboard installations, simplifying the installation process. The NAVPILOT 300/PG-M package includes a 1.6L pumpset, suitable for boats with multiple-cylinder steering systems, and a PG700 Fluxgate Compass Heading Sensor for accurate heading data with magnetic field distortion correction. The system incorporates adaptive learning technology for consistent performance. Additionally, it offers specialized operational modes such as SABIKI mode for maintaining heading astern, and Fish Hunter mode, which enables pre-programmed maneuvers around a target. An optional Gesture Controller allows for remote autopilot control via Bluetooth within a 10-meter range.
