040-1 - Navisafe Navilight All-White 5 Mode 360° 2NM w/Navimount Base

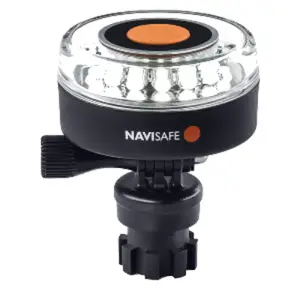

Navilight All-White 5 Mode 360° 2NM with Navimount Base

Portable All-round white Navigation light with Navimount base, compatible with Navisafe Navimount system and many GoPro® / Action camera mounts.

The Navilight 360° without the Navimount base can be mounted directly to the 4-piece-pole but also directly to all kind of GoPro® / Action camera mounts.

The Navilight 360° together with the Navimount base can be mounted directly to all Navimount’s – for example to the Navimount Rail / 956 onto the push pulpit or onto the Navimount Horizontal / 952 on the cabin roof.

On a power-driven vessel underway of 12 meters or more in length but less than 50 meters in length:

• Sternlight
• All-round white light

On a power-driven vessel underway of less than 12 meters in length:

• Masthead light
• Sternlight
• All-round white light

On a power-driven vessel underway of less than 7 meters in length whose maximum speed does not exceed 7 knots:

• All-round white light

Rowing / Paddle vessels

• All-round white light

Anchored vessels and vessels aground

Anchor lights must always be shown from sunset to sunrise.

• All-round white light

Features:

• 360° All-round/Anchor light with 15 hour burn time
• 225° Masthead light with 24 hour burn time
• 135° Sternlight with 32 hour burn time
• Safety/Flashing light with 85 hour burn time
• Cabin/Courtesy light with 72 hour burn time

Specifications

• USCG Approval, 2 Nautical Miles
• 5 Modes: 360° All-round light, 225° Masthead light, 135° Sternlight, Flashing light, Anchoring light, Cabin light
• Floats light facing up
• Submersible to 20 m / 66 ft.
• Corrosion resistant
• Powered by three AAA batteries (not included)
• Size: H = 90 mm, Ø = 68 mm
• Weight (net): 109 g

Modes/approximate burn time

• 16 white LED, 360° All-round light, Anchoring light / 15hrs
• 16 white LED, 360° Flashing light / 85hrs
• 10 white LED, 225° Masthead light / 24hrs
• 6 white LED, 135° Sternlight / 32hrs
• 4 white LED, 360° Cabin light / 72hrs

The Navisafe Navilight All-White 5 Mode 360� 2NM with Navimount Base, part number 040-1, is a portable, all-round white navigation light designed for various marine applications. This device is suitable for operators of power-driven vessels, rowing vessels, paddle vessels, and anchored vessels requiring USCG-approved lighting up to 2 nautical miles. It addresses the need for adaptable and compliant illumination in diverse on-water scenarios.

Key features include five operational modes: 360� All-round/Anchor light, 225� Masthead light, 135� Sternlight, Safety/Flashing light, and Cabin/Courtesy light, each with specified burn times. The unit is submersible to 20 meters (66 feet), corrosion-resistant, and floats with the light facing up, enhancing its utility in marine environments. Its compatibility with the Navisafe Navimount system and GoPro�/Action camera mounts provides flexible installation options on various vessel types and structures.
