017146101 - Hella Marine NaviLED PRO Port Navigation Lamp - Black - 3NM

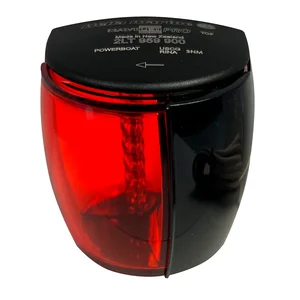

NaviLED PRO Port Navigation Lamp - Black - 3NM

This port power-saving LED navigation lamp is ultra-durable for enhanced safety. NaviLEDPRO lamps are proven worldwide on commercial, military, and recreational vessels.

*Designed for the port side of a vessel.

Ultra-Low Current Draw

This lamp consumes less than 3.2 watts combined.

No Bulbs, No Maintenance, and an Ultra-Long Service Life

Hella Marine LED technology has no filaments to break, making NaviLEDPRO lamps extremely shock- and vibration-proof for proven reliability and safety in demanding conditions.

MultivoltTM 9-33VDC

Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.

Fully Sealed for Life. IP67-Certified

This NaviLEDPRO lamp is a completely sealed unit. High-impact housing ensures durability from waves and impacts. Ultra-heavy-duty BSH versions use high-tech Grilamid lenses to offer superior strength in extreme conditions.

Pre-wired with 2.5m of Twin-Core Marine Cable

High-quality cable assemblies for time-saving, completely sealed installations.

Specifications:

• Dimensions (W x H): 3.43 x 3.54 inches (87mm x 90mm)
• Lamp Color: Black
• Material Description: Hi-impact-resistant acrylic lens
• Minimum Visible Distance: 3 nautical miles (powerboats only)
• Cable: Pre-wired with 2.5m of twin-core marine cable
• Operating Voltage: Multivolt 9-33V DC
• Voltage Protection: The spike is protected to +500 volts. Reverse polarity is protected to -700 volts
• Power Consumption: Less than 3.2W
• Degree of Protection: IP67 (completely sealed)
• Weight: 250g (including cable)
• Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ

The Hella Marine NaviLED PRO Port Navigation Lamp (part number 017146101) is a durable, energy-efficient LED navigation light designed for demanding marine environments. This black, 3NM port lamp is suitable for commercial, military, and recreational vessels requiring reliable navigation lighting. It addresses the need for robust performance in harsh conditions through its shock and vibration-proof LED technology, eliminating fragile filaments. With a low power consumption of less than 3.2 watts, it contributes to reduced energy use. The lamp features Multivolt 9-33V DC compatibility, ensuring stable operation despite voltage fluctuations, and offers spike protection up to +500 volts and reverse polarity protection up to -700 volts. Its IP67 rating guarantees complete sealing against water and dust, while the pre-wired 2.5 meters of twin-core marine cable simplifies installation.
