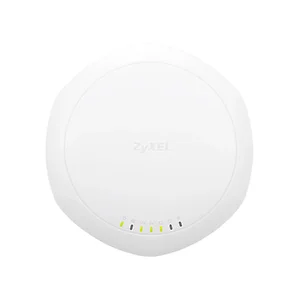

NAP203 - Zyxel Access Point NAP203 3x3 11AC Cloud Managed Access Point (1 Year Bundled Service) Retail

Product name
802.11ac Dual-radio Dual-optimized Antenna 3x3 Nebula Cloud Managed Access Point RF Specifications
802.11n/ac premium features: 3x3 Multiple-Input Multiple-Output (MIMO) with three spatial streams
Antenna system: Dual-optimized internal antenna
Antenna gain:
- Ceiling: 2.4 GHz 3 dBi 5 GHz 4 dBi
- Wall: 2.4 GHz 4 dBi 5 GHz 5 dBi
Support Data Rate:
- 802.11a/g: 1, 2, 5.5, 6, 9,11, 12, 18, 24, 36, 48, and 54 Mbps
- 802.11n: up to 450 Mbpsin MCS23 (40 MHz)
- 802.11ac: up to 1300Mbps in MCS9 (80 MHz)
Receive Sensitivity: Min. Rx sensitivity up to -102 dBm WLAN
WLAN Maximum Throughput: Up to 900Mbps
- Wireless Security:
- WEP
- WPA/WPA2-PSK
- WPA/WPA2-Enterprise
- Multiple EAP types
- IEEE802.1X
- MAC filtering
- Layer-2 isolation
- RADIUS authentication
- More encryption supported and captive portal
- Network:
- VLANs
- DHCP Client
- QoS (PG):
- WMM
- WMM Power Save
- DiffServ Marking Physical Interfaces
Number of 10/100/1000M LAN: 2
Console port: 4-Pin Serial
PoE Power Draw: 12.48W (802.3at PoE)
Input power: 802.3at PoE Only (No DC jack) Standard Compliance
Ethernet:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.11ab
- IEEE 802.3au
- IEEE 802.3az
- IEEE 802.3at
- PoE: IEEE 802.3at
WLAN:
- 802.11b: DBPSK, DQPSK, CCK
- 802.11g: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11a: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM Certifications
Radio:
- FCC Part 15C
- FCC Part 15E
- ETSI EN 300 328
- EN 301 893
- LP0002
EMC:
- FCC Part 15B
- EN 301 489-1
- EN 301 489-17
- EN55022
- EN55022
- EN61000-3-2/-3
- EN60601-1-2
- BSMI CNS13438
Safety:
- EN 60950-1
- IEC 60950-1
- BSMI CNS14336-1 Environmental Specifications
Weather Protection: -
Operating:
- Temperature: 0^oC to 50^oC (32^oF to 122^oF)
- Humidity : 10% to 90%
Storage:
- Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
- Humidity : 10% to 90% (non-condensing) Item Dimension (L inchxW inchxH inch)
10 x 10 x 3 Weight
2.07 lb Warranty Information
Limited Lifetime
