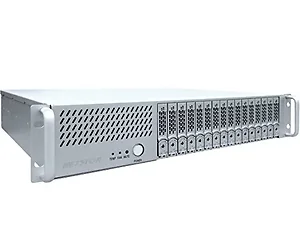

Highpoint NA338TB 2U 16-Bay Thunderbolt 2 NAS Storage Solution

Out of Stock
Condition: New

$2,221.44  $2,998.94
 Free Shipping for this Item

Product Overview

The HighPoint 2U 16-Bay Thunderbolt 2 Network Attached Storage is the ultimate solution for storage expansion. Designed for professional environments, this robust system supports multiple drives to cater to high-capacity storage needs. The dual Thunderbolt 2 interface allows for versatile connections and daisy chaining, while maintaining exceptional data transfer rates.

With support for both SAS and SATA drives, this NAS solution is perfect for video editing, data archiving, and other bandwidth-intensive applications. Its heavy-duty construction, combined with advanced cooling solutions, ensures reliable operation in demanding conditions.

Technical Specifications

  • Hot Interface: Thunderbolt 2 (Dual Port for Daisy Chain)
  • Data Transfer Rate: 20Gbps Bi-Directional
  • HDD Interface: SAS/SATA (12G/6Gbps)
  • Number of Disk(s): Up to 16 (For 2.5" SSD/HDD sold separately)
  • RAID Level: Requires a RAID card with 16 internal ports and Thunderbolt driver (RocketRAID 2740)
  • PCIe Slot Expansion: Two PCIe2.0 x8 and One PCIe2.0 x4
  • Thunderbolt Expansion: Up to Six Thunderbolt devices
  • LED Display for Enclosure: Up to Six Thunderbolt devices
  • LED Display for Each Tray: White - Power On Indicator; Flash Blue - HDD Accessing Indicator; Red - HDD Failure Indicator
  • Alarm: Mutable buzzer beeping for fan failure or over temperature occurs
  • System Support: New Mac Pro, Mac mini, MBP, iMac with a Thunderbolt port
  • OS Support: Mac OS X 10.6.8/10.7.x/10.8.x/10.9.x/Yosemite
  • PCIe Card Driver Requirement: Third-party PCIe card should support Mac OS X with Thunderbolt aware driver
  • Supported PCIe Cards: Full length and full height PCIe card
  • Material: Heavy-Duty Cold-Rolled Steel Housing
  • Power Supply: 460W Single PSU (Server Grade), Input: 90 to 230V AC / 50/60Hz, Output: +5V and +12V
  • Cooling: Four 60x60x25mm Cooling Fans
  • Operating Temperature: 5 to 40 C (41 to 104 F)
  • Storage Temperature: -10 to 50 C (14 to 122 F)
  • Relative Humidity: 20% to 80% (Non-Condensing)

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • HighPoint
  • NA338TB
  • 643653338016
  • New
  • 31.31 lbs
  • 16 X 3 X 19
  • Feb 19, 2026
  • Aug 25, 2015
Product Identifiers: Brand: Highpoint • Part #: NA338TB • UPC: 643653338016 • Category: Network Attached Storage
