Product Overview

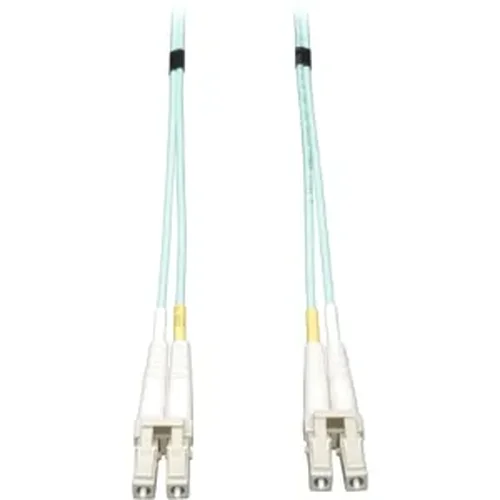

General InformationTripp Lite introduces it's new OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.Technical InformationCable Type: Fiber OpticCable Characteristic: Patch CableFiber Optic Mode: Multi-modeCore/Cladding Diameter: 50/125 mCable Length: 114.83 ftConnector on First End: 2 x LC Male NetworkConnector on Second End: 2 x LC Male NetworkJacket Type: LSZHDevice Supported: Network DevicePhysical CharacteristicsColor: AquaMiscellaneousEnvironmentally Friendly: YesEnvironmental Certification: RoHSWarrantyLimited Warranty: Lifetime
Technical Specifications
Fiber Type
50/125 - OM3
Intended Application
Computer Networking (Fiber)
Cable Type
10GIG AQUA MULTIMODE 50/125 FIBER OPTIC
Network Speed
10Gbps / 40Gbps / 100Gbps INPUT
Cable Length (m):35
PHYSICAL
Color:Aqua
Style:Fiber Optic CONNECTIONS
Connector A:LC
Connector B:LC
Number of Connectors:4 Item Dimension (L"xW"xH"):
10.5 x 12 x 0.82
Weight:
0.62 lb
Warranty Information:
Lifetime limited warranty
