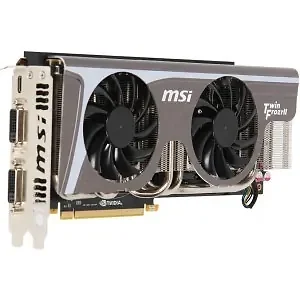

MSI Video Card N580GTX TWIN FROZR II/OC GeForce GTX 580 1.5GB GDDR5 384Bits Dual DVI/mini-HDMI Retail
Twin Frozr II Thermal Design
- Nickel-plated Copper Base: Large size of Copper Base can dissipate the heat of GPU faster.
- Dual 8CM PWM Fans: Dual fans provide double air flow. Air flow from dual fans can cool down whole module at once.
- Five heat pipes with SuperPipe Technology: Five heat pipes can provide faster heat dissipation.
- Form-in-one heat sink: Form-in-one heat sink covers the memory and power module
- 19?C cooler and 8.4dB quieter compared to reference design
MSI Afterburner overclocking utility
- Support Over Voltage function of GPU.
- 2D/3D profile switch support
All Solid Capacitor
- Ultra long lifetime and top stability.
- Lower ESR and Temperature.
PhysX and 3D Vision Surround technology
- Support PhysX technology effects for realist physics effect.
- Support 3D Vision Surround technology to provide 3 monitor output simultaneously and real 3D image experience in SLI mode.
(Requires compatible 3D monitors and 3D glasses)
Video Output Function
Dual-link DVI x 2
Mini HDMI x 1
VGA(Optional, via DVI to D-Sub adapptor)
HDMI(Optional, via Mini HDMI to HDMI dongle)
| Vendor: | MSI (Micro Star) |
| MPN: | N580GTX TWIN FROZR II/OC |
| UPC: | |
Detail Specifications
Features
- MSI Solid Capacitor Graphic Cards
- PhysX
- NVIDIA CUDA Technology
- NVIDIA 3D Vision Surround
- HDMI + DVI Output
- HDMI convertible output
- 3 way NVIDIA SLI Technology- NVIDIA SLI Technology
- NVIDIA PureVideo HD Technology
- Blu-ray and HD DVD Support
- HDMI Support
- PCI Express 2.0 Support
- Meet RoHS regulations
- HDCP Support |
| Graphics Engine : GeForce GTX 580 |
| Bus Standard : PCI Express x16 2.0 |
| Memory Type : GDDR5 |
| Memory Size(MB) : 1536 |
| Memory Interface : 384 bits |
| Core Clock Speed(MHz) : 800 |
| Memory Clock Speed(MHz) : 4096 |
| DVI Output : 2 |
| D-SUB Output : 2(optional, via DVI to D-Sub adaptor) |
| HDMI-Output : 2(Optional, via Mini HDMI to HDMI dongle) |
| Mini HDMI-Output : 1 |
| TV-Output : N/A |
| DisplayPort : N/A |
| Mini DisplayPort : N/A |
| VIVO(Video-in/out) : N/A |
| HDTV Support : N/A |
| HDCP Support : Y |
| HDMI Support : Y |
| Dual-link DVI : Y |
| Display Ouput(Max Resolution) : 2560x1600 |
| RAMDACs : 400 |
| DirectX Version Support : 11 |
| OpenGL Version Support : 4.0 |
| CrossFire Support : N/A |
| SLI Support : Y |
| 3-way SLI : Y |
| HyperMemory Tech. : N/A |
| TurboCache tech. : N/A |
| Card Dimension(mm) : 268 x 115 x 37mm |
| Warranty : 3 Years |
