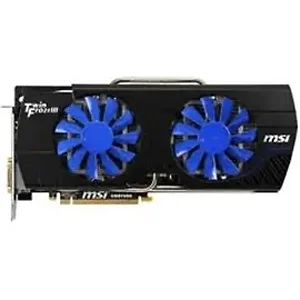

MSI Video Card N580GTX LIGHTNING XE 3GB DDR5 384Bit PCI Express D-DVI/HDMI/DisplayPort Retail
3GB GDDR5 Memory
The 3GB GDDR5 Memory is designed for the ultimate gaming experience with 3D Vision Surround technology.
Dust Removal Technology & Smart Temp Sensor Technology
Dust Removal Technology keeps dust away and Smart Temp Sensor Technology signals high temperature operating conditions.
Power4 Architecture
Provides the most powerful power system for extreme overclocking for:
2X Phase PWM Design on GTX580 for better power supply.
Independent Memory Power for pure and sufficient power.
CopperMOS with 2X higher current capacity for stable power support.
Proadlizer*4 optimize power supply and have better overclocking capability.
Twin Frozr III
Thermal design with Propeller Blade and SuperPipe technologies cool down the GPU?s temperature to 21 ?C cooler and 5.5dB quieter!
Triple Temp Monitor
The Triple Temp Monitor by Afterburner is to monitor the temperature of GPU/Memory/MOSFET.
Triple Overvoltage
The Triple Overvoltage by Afterburner (GPU/Memory/PLL) to get higher performance.
| Vendor: | MSI (Micro Star) |
| MPN: | N580GTX LIGHTNING XE |
| UPC: | 816909086720 |
Detail Specifications
CUDA Cores :
512 |
Core Clock :
832 MHz |
Shader Clock :
1664 MHz |
Shader Clock :
1664 MHz |
Memory Size:
3GB GDDR5 |
Memory Bus:
384 Bits |
Output:
Display Port x1
HDMI Port x1
DVI Port x2 |
TDP:
260 Watts |
Form Factor:
ATX |
Temperature Monitor:
GPU/Memory/MOSFET |
Over Voltage:
GPU/Memory/PLL |
PWM Phase:
16 Phase |
Fans:
Dual 9cm Fans |
Support
DirectX: 11
OpenGL: 4.0
CUDA: Yes
SLI Support: 3-Way
PhysX: Yes
PureVideo HD: Yes
HDCP: Yes |
Item Dimension (L"xW"xH"):
18 x 12 x 3
Weight:
4 lb
Warranty Information:
3 Years |
