Technical Specifications

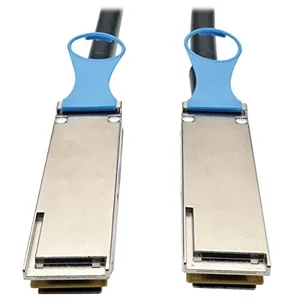

General InformationThe N282-01M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets. This one-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position "board-as-connector" design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand.Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-01M-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.Additional Product SpecificationsFull Product Specifications:Click to viewTechnical InformationCable Type:InfiniBandCable Length:3.28 ftConnector on First End:1 x QSFP+ Male NetworkConnector on Second End:1 x QSFP+ Male NetworkFeatures:FlexibleFeatures:Crosstalk ProtectionFeatures:PassiveDevice Supported:Network DeviceAmerican Wire Gauge:26 AWGData Transfer Rate:12.50 GB/sPhysical CharacteristicsColor:BlackMiscellaneousGreen Compliant:YesGreen Compliance Certificate/Authority:REACHGreen Compliance Certificate/Authority:RoHSWarrantyLimited Warranty:Lifetime
