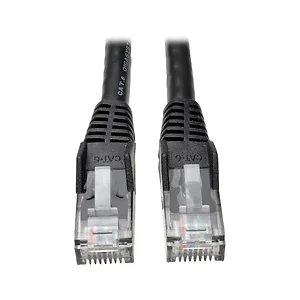

Premium cabling for Category 6, Category 5e and Category 5 applications, rated for 550 MHz/1 Gbps communications.
- UPC Code: 037332125491
- Technology: Cat6; PoE
- Cable Jacket Color: Black
- Cable Jacket Material: PVC
- Cable Jacket Rating: CM
- Cable Shielding: UTP
- Cable Outer Diameter (OD): 6.0 mm
- Number of Conductors: 4 Pair
- Conductor Material: Stranded Copper
- Conductor Gauge: 24 AWG
- Cable Length (ft.): 3
- Cable Length (in.): 36
- Shipping Dimensions (hwd / in.): 9.00 x 7.00 x 0.50
- Shipping Weight (lbs.): 0.14
- Unit Dimensions (hwd / in.): 0.000 x 0.000 x 0.000
- Operating Temperature Range: 14r to 122rF (-10r to 50rC)
- Storage Temperature Range: 5r to 140rF (-15r to 60rC)
- Operating Humidity Range: 0% to 90% RH, Non-Condensing
- Storage Humidity Range: 0% to 90% RH, Non-Condensing
- Bandwidth per TIA Standard: 250 MHz
- Maximum Bandwidth as Tested: 500 MHz
- Network Compatibility: 1 Gbps (Gigabit)
- IEEE Standards Supported: 802.3an; 802.3at
- Side A - Connector 1: RJ45 (MALE)
- Side B - Connector 1: RJ45 (MALE)
- Contact Plating: Gold
- PoE Type: Type 2 PoE+ (30W, IEEE 802.3at)
- Connector Type: Snagless; Molded
- Wiring Configuration: EIA/TIA 568B
- Snagless Connector: Yes
- Product Certifications: UL Listed; cUL Listed
- Product Compliance: CE (Europe); RoHS; IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; REACH; UKCA
- Product Warranty Period (Worldwide): Lifetime limited warranty
