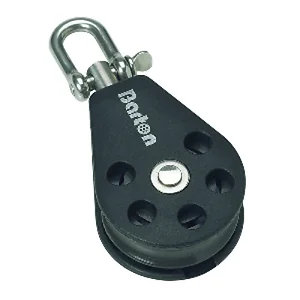

N01 130 - Barton Marine Size 1 Single Swivel Block w/Becket

Size 1 Single Swivel Block with Becket

With the unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter center boss. This allows us to fit more load-bearing balls, which ensure extremely low friction performance, even under high loads.

Specifications:

• Sheave size: 20mm x 8mm
• Max rope diameter: 5mm
• Safe working load: 275kg / 606lbs
• Breaking load: 550kg / 1210lbs
• Length: 39.1mm
• Weight: 13g

The Barton Marine Size 1 Single Swivel Block with Becket, part number N01 130, is a compact component designed for managing rope systems requiring efficient load transfer. This block features acetal sheaves and Delrin ball bearings, integrated into a super-low friction ball race system. The design incorporates a large diameter center boss to accommodate more load-bearing balls, which contributes to its low friction performance, even when operating under significant loads. With a safe working load of 275kg (606lbs) and a breaking load of 550kg (1210lbs), it is suitable for applications where controlled movement of lines up to 5mm in diameter is necessary. Its small form factor (39.1mm length, 13g weight) makes it appropriate for systems where space and weight are considerations, providing a reliable solution for redirecting or reducing friction in various rigging setups.
