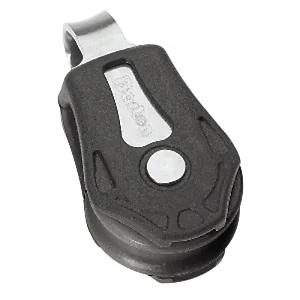

N00 110 - Barton Marine Series 0 Single Fixed Eye Block - 20mm

Series 0 Single Fixed Eye Block - 20mm

Plain Bearing Blocks

Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Specifications

• Sheave size: 20mm x 8mm
• Max rope diameter: 5mm
• Safe working load: 275kg / 606lbs
• Breaking load: 550kg / 1210lbs
• Length: 39.1mm
• Weight: 13g

The Barton Marine Series 0 Single Fixed Eye Block, part number N00 110, is a plain bearing block designed for applications requiring reliable load management. This unit features a 20mm acetal sheave, which runs on a brass bearing to facilitate smooth operation under various load conditions. With a maximum rope diameter capacity of 5mm, it is suitable for integration into systems where compact and efficient rope guidance is necessary. The block has a safe working load of 275kg (606lbs) and a breaking load of 550kg (1210lbs), providing a clear operational limit for system designers. Measuring 39.1mm in length and weighing 13g, its small footprint and light weight make it appropriate for space-constrained installations. This component is intended for IT and industrial buyers who need to source specific hardware for custom rigging, automation, or material handling solutions where precise load bearing and rope management are critical.
