Technical Specifications

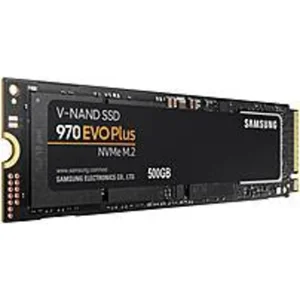

<b> Type</b><br> <b> Product Type</b><br> SSD<br> <b> Series</b><br> 970 EVO Plus<br> <b> Usage Application</b><br> Client PCs<br> <b> Interface</b><br> PCIe Gen 3.0 x 4, NVMe 1.3<br> <b> Application</b><br> <b> Consumer</b><br> Yes<br> <b> Storage</b><br> <b> Capacity</b><br> 500GB (1GB is equal to 1 Billion byte by IDEMA) <br>Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) <br> <b> Key Features</b><br> <b> Sequential Read Speed</b><br> Up to 3,500 MB/s ( Performance may vary based on system hardware and configuration)<br> <b> Sequential Write Speed</b><br> Up to 3,200 MB/s ( Performance may vary based on system hardware and configuration)<br> <b> Random Read Speed</b><br> Random Read (4KB, QD32): Up to 480,000 IOPS, Random Read (4KB, QD1): Up to 19,000 IOPS (Performance may vary based on system hardware and configuration)<br> <b> Random Write Speed</b><br> Random Write (4KB, QD32): Up to 550,000 IOPS Random Write (4KB, QD1): Up to 60,000 IOPS (Performance may vary based on system hardware and configuration)<br> <b> Controller</b><br> Samsung Phoenix Controller<br> <b> NAND Flash</b><br> Samsung V-NAND 3-bit MLC<br> <b> Cache Memory</b><br> Samsung 512MB Low Power DDR4 SDRAM<br> <b> Trim Support</b><br> Supported<br> <b> AES Encryption</b><br> AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) <br> <b> S.M.A.R.T. Support</b><br> Supported<br> <b> GC (Garbage Collection) </b><br> Auto Garbage Collection Algorithm<br> <b> WWN Support</b><br> Not supported<br> <b> Device Sleep Mode Support</b><br> Yes<br> <b> Temperature proof</b><br> Yes<br> <b> NVMe</b><br> Yes<br> <b> Gaming SSDs</b><br> Yes<br> <b> General</b><br> <b> Average Power Consumption (system level) </b><br> Average: 5.8 W Maximum: 9 W (Burst mode) (Actual power consumption may vary depending on system hardware and configuration)<br> <b> Power consumption (Idle) </b><br> Max. 30 mW (Actual power consumption may vary depending on system hardware and configuration) <br> <b> Voltage</b><br> 3.3 V +/- 5 % Allowable voltage<br> <b> Reliability (MTBF) </b><br> 1.5 Million Hours Reliability (MTBF) <br> <b> Environmental Specs</b><br> <b> Operating Temperature</b><br> 0 - 70<sup>o</sup>C Operating Temperature<br> <b> Shock</b><br> 1,500 G and 0.5 ms (Half sine) <br> <b> Form Factor</b><br> <b> Product</b><br> M.2 (2280) <br> <b> Software</b><br> <b> Management SW</b><br> Magician Software for SSD management<br> <b> Item Dimension (L"xW"xH") </b><br> 6 x 4 x 1 <br> <b> Weight </b><br> 1.00 LB <br> <b> Warranty Information</b><br> 5 years or 150TB TBW <br>
